L-810 Solar-Powered Obstruction Light
Downloads
- Product Data Sheet: L-810 Solar-Powered Obstruction Light
- L-810 Solar-Powered Obstruction Light Installation and Maintenance Manual
- L-810 Solar-Powered Obstruction Light Quick Install Guide
- L-810 Solar Angle Setting Guide
- FAA Engineering Brief No. 76: Using Solar Power for Airport Obstruction Lighting
Applications

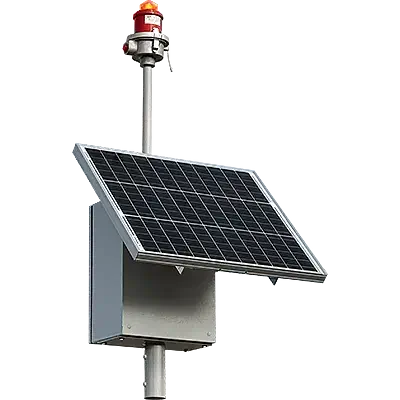

The L-810 Solar-Powered Obstruction Light provides reliable obstruction lighting for remote locations where running electrical infrastructure would be costly or impractical. The all-in-one solar system combines a high-capacity lithium-ion battery, efficient solar panel, and durable housing into a fully self-contained unit. Available in single or dual light configurations, the system provides dependable dusk-to-dawn or 24/7 operation and up to 7 days of autonomy on a full charge.
Features
• 100% solar-powered L-810 LED obstruction light – eliminates the cost and complexity of running electrical power to remote locations
• Available with L-810 omni-directional, red, steady-burning LED obstruction light in single or dual configurations
• Complies with FAA EB-76 “Using Solar Power for Airport Obstruction Lighting”
• Automatic photocell for “dusk to dawn” operation
• Option for 24/7 “always on” mode
• 50 Ah lithium-ion battery with MPPT charge controller for long life (rated for 4,000 discharge cycles, or 10+ years)
• 50-watt solar panel ensures operation in sunny or cloudy climates
• 7-day autonomy: runs for 7 days without sun on a fully charged battery (single light, dusk to dawn)
• Adjustable solar panel angle based on location
• Powder-coated housing for superior environmental protection

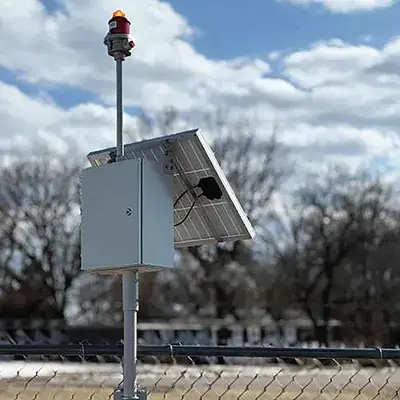

• Perfect for fences, posts, buildings, or any other obstructions that are difficult to run power to

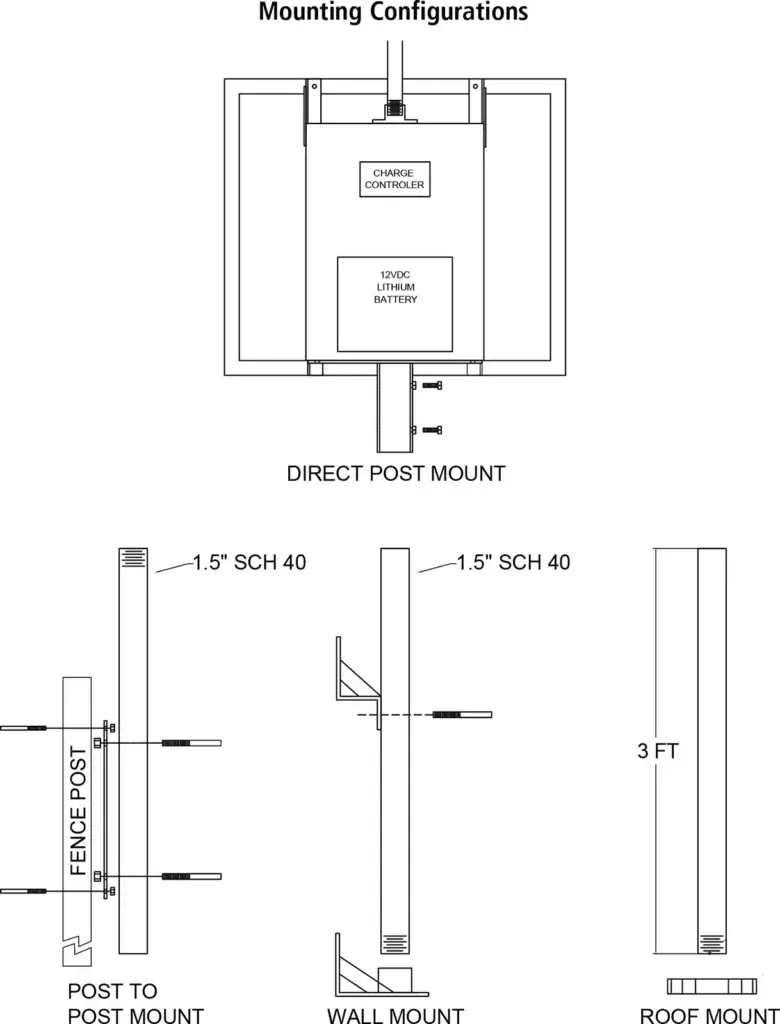

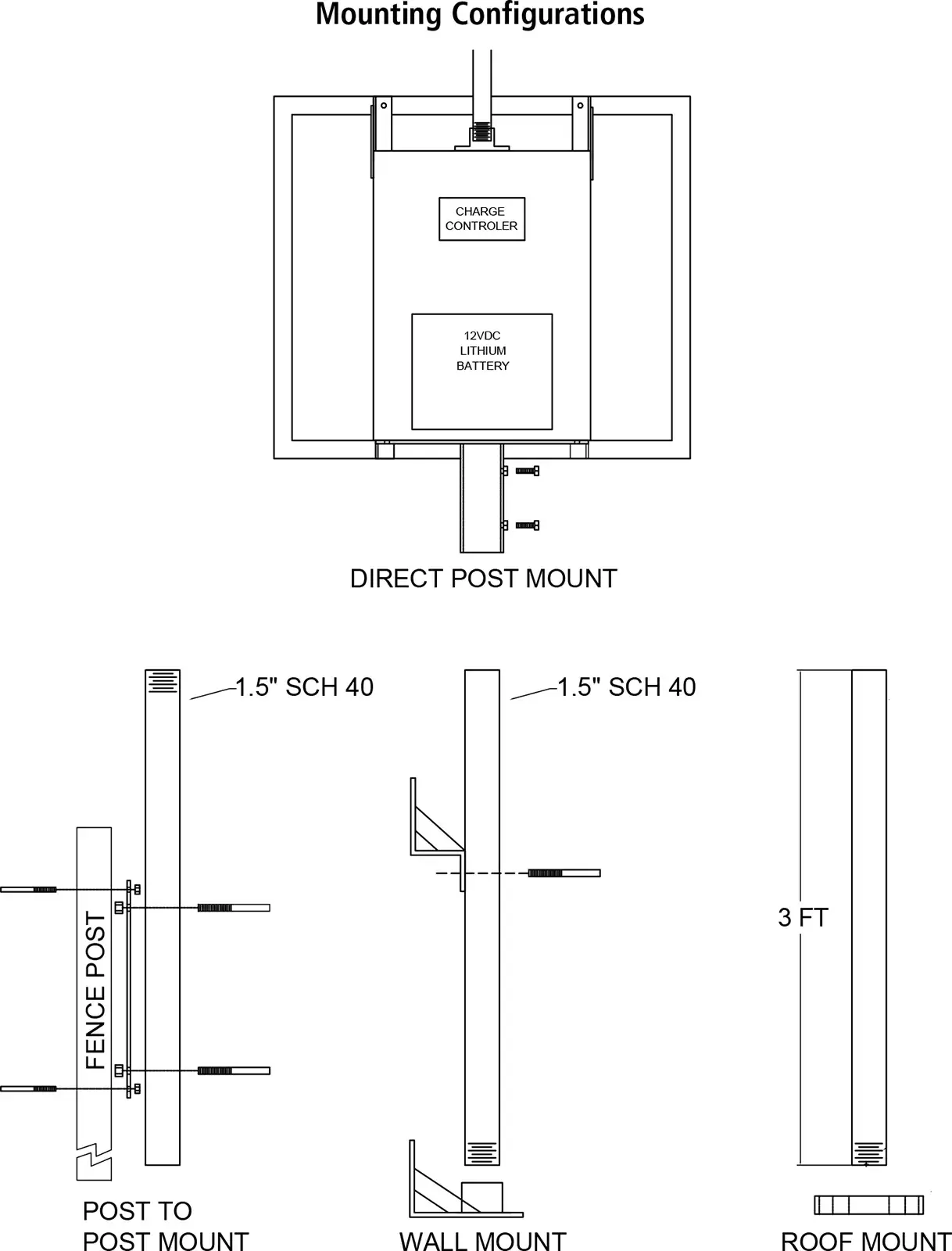

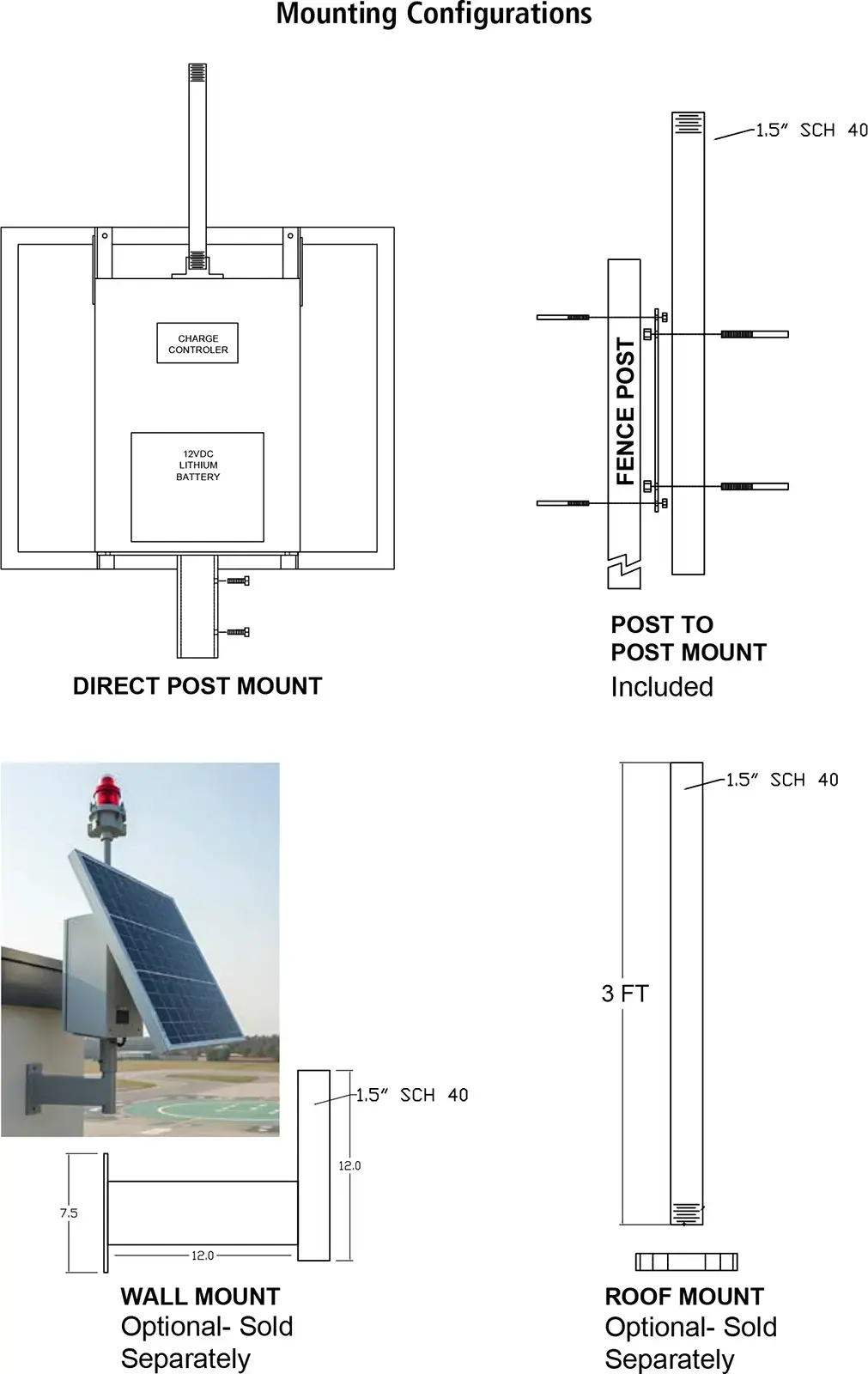

– Universal fence mount plate fits posts from 1-5/8″ to 3.5″ in diameter (includes 2.5″ U-bolts)

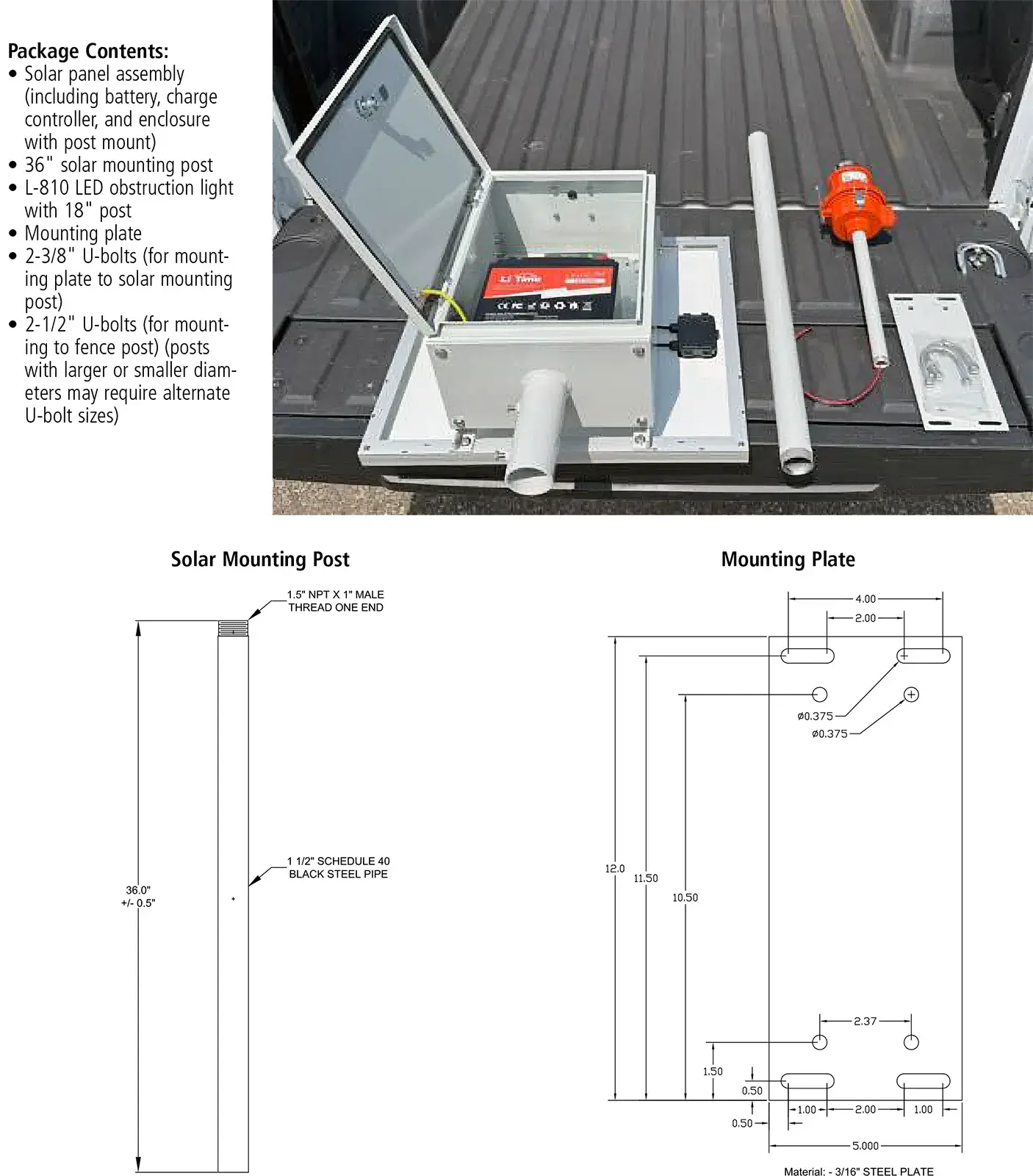

– Easy installation: mount plate and post to fence first, then slip on pre-assembled housing and panel
– Optional wall or roof mount hardware available
• 4-year warranty on LED light; 2-year warranty on solar panel, battery, and all other components

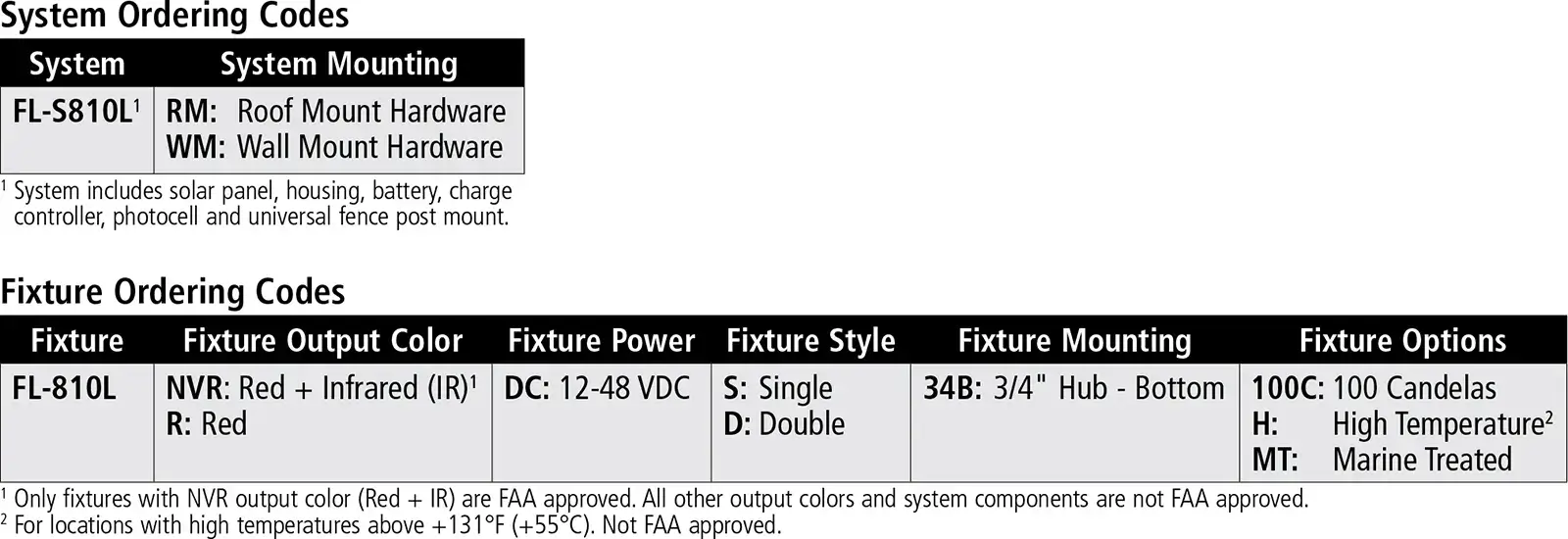

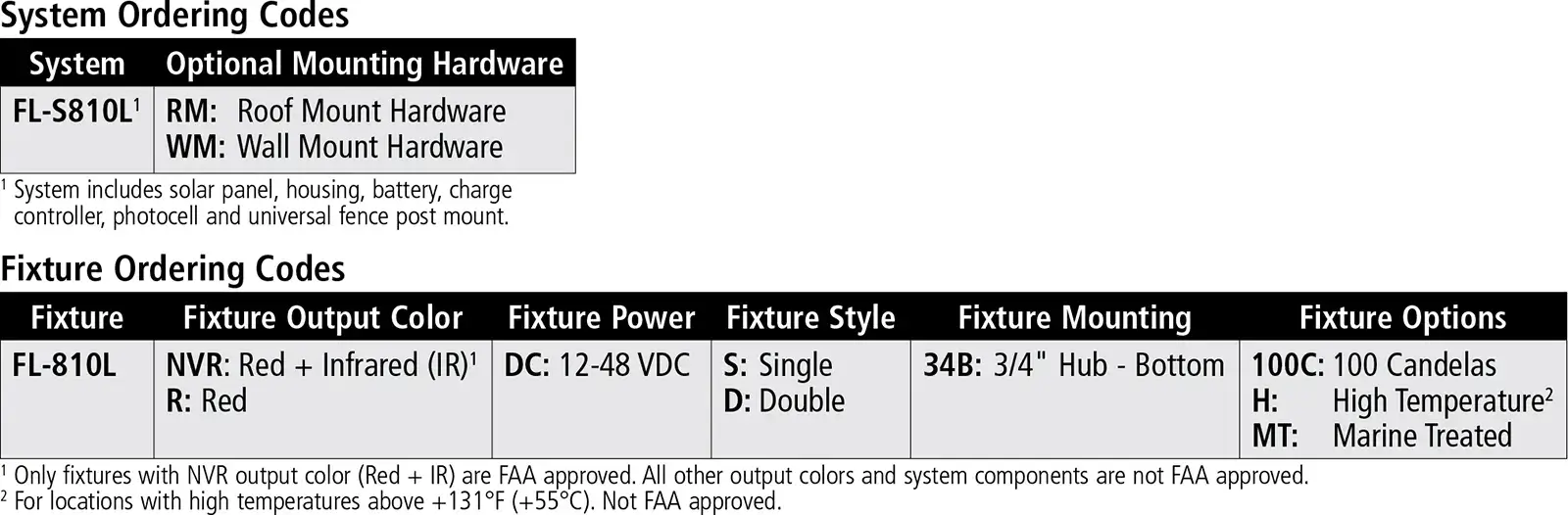

System Ordering Codes
| System | Optional Mounting Hardware |
|---|---|
| FL-S810L[1] | RM: Roof Mount Hardware WM: Wall Mount Hardware |
| [1] System includes solar panel, housing, battery, charge controller, photocell and universal fence post mount. | |

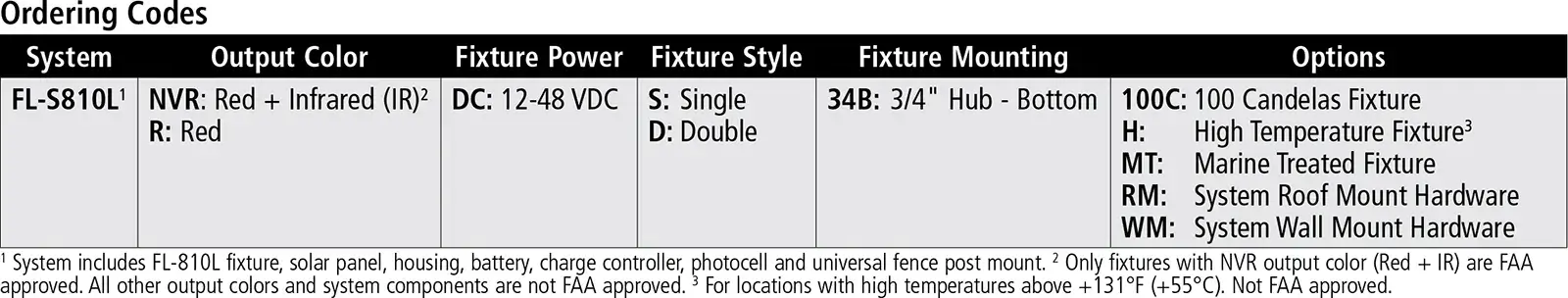

Fixture Ordering Codes
| Fixture | Fixture Output Color | Fixture Power | Fixture Style | Fixture Mounting | Fixture Options |
|---|---|---|---|---|---|
| FL-810L | NVR: Red + Infrared (IR)[1] R: Red |
DC: 12-48 VDC | S: Single D: Double |
34B: 3/4″ Hub – Bottom | 100C: 100 Candelas Fixture H: High Temperature Fixture[2] MT: Marine Treated Fixture |
| [1] Only fixtures with NVR output color (Red + IR) are FAA approved. All other output colors and system components are not FAA approved. [2] For locations with high temperatures above +131°F (+55°C). Not FAA approved. | |||||
Replacement Parts
• 2300-0024: Fuse, Mini 30 amp 32 volt
• 1300-0092: Battery, Lithium-Ion, 12VDC, 50AH
• 7800-0020: Charge Controller
• 7800-0019: Solar Panel, 50 Watt
• L810LED 12-48VDC: L810 Assy, Single, LED, 12-48V
Shipping Information
• Main enclosure, battery, and light: 48.2 lb.
• Fence mount hardware and post: 10.2 lb.
• Shipping weight: 60 lb.
• Shipping dimensions: 36″ x 24″ x 20″
