ZA280C | L-852C 8″ Taxiway Centerline, Straight Sections (Narrow), High Intensity Lighting Solutions

This product is available in our webstore – Shop Now

Compliance and Applications

• FAA Certified: L-852C (AC 150/5345-46)
• ICAO Annex 14. Vol 1
• IEC 61827
• EASA
• Stanag 3316 (NATO)

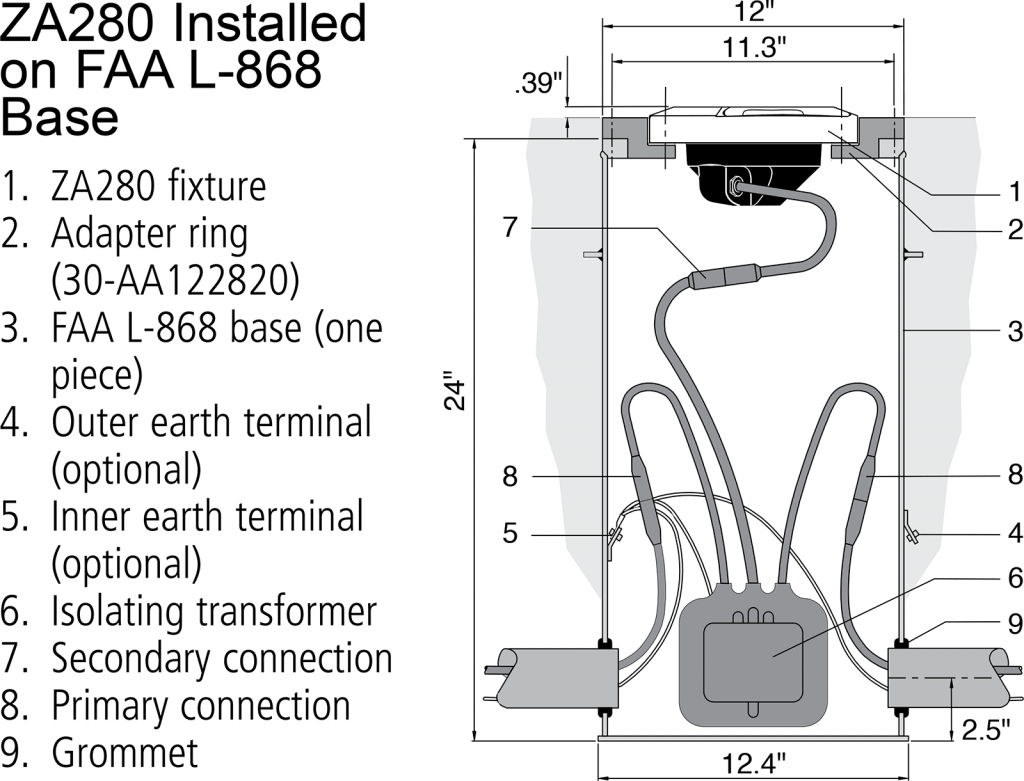

The ZA280C is a high intensity, inset taxiway centerline (narrow straight sections) fixture with a narrow beam, suitable for CAT III all weather operation airfield ground lighting (agl) systems.

The fixture may be used in 6.6A airfield lighting circuits normally supplied from 1 x 45W, 1 x 65W or 100W isolating transformer. Power consumption is normally 48W.

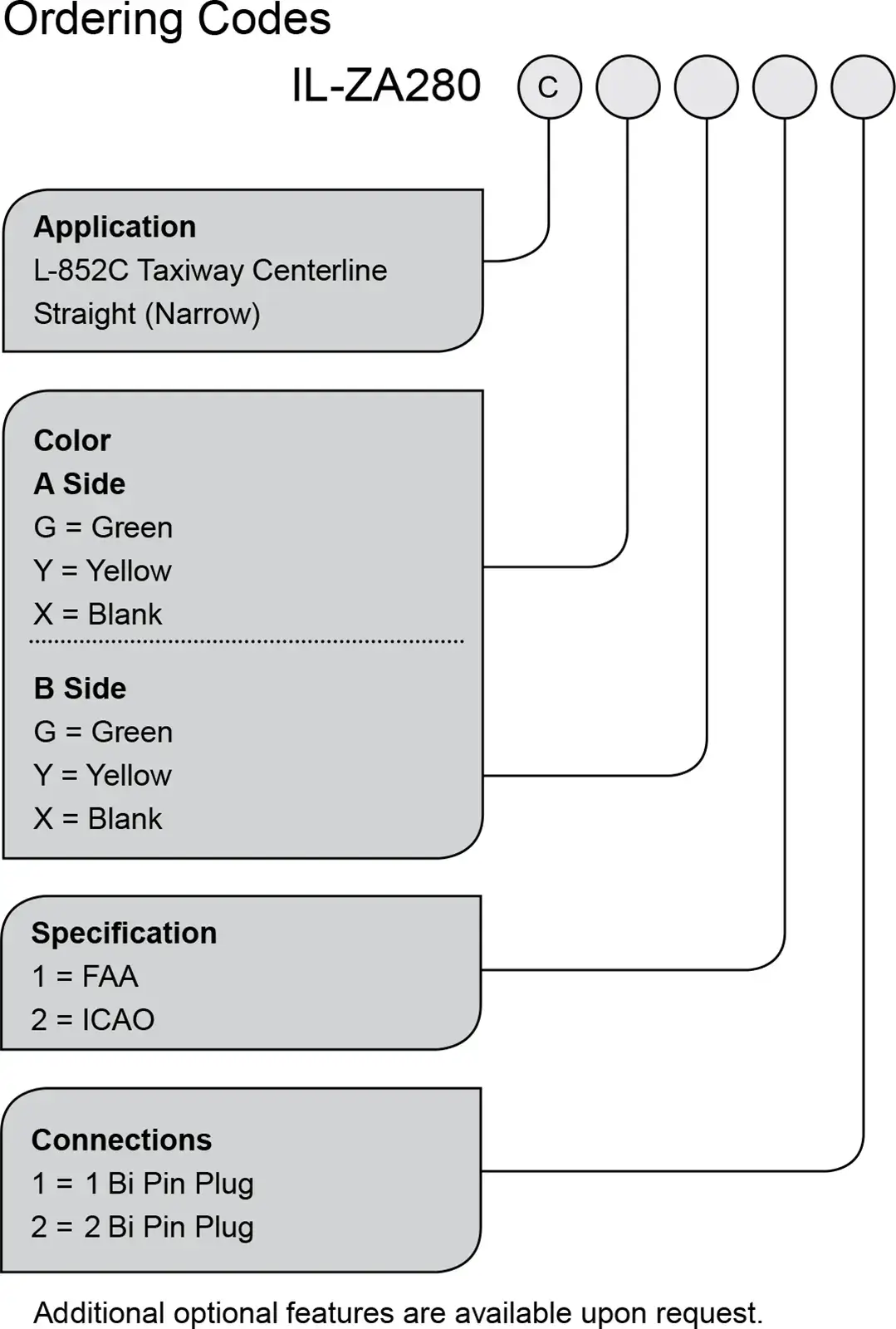

Ordering Codes

Application Color: A Side Color: B Side Specification Connections
80-ZA280C: L-852C Taxiway Centerline Straight (Narrow) G: Green
Y: Yellow
X: Blank
G: Green
Y: Yellow
X: Blank
1: FAA
2: ICAO
1: 1 Bi Pin Plug
2: 2 Bi Pin Plug
Additional optional features are available upon request.

Packaging

• Net weight: 6.6 lb. (3Kg)
• Gross weight: 7.7 lb. (3.5Kg)
• Box: 9.1″ (230mm) (w) x 9.1″ (230mm) (d) x 5.7″ (146mm) (h)
