RCM-D Runway Closure Marker | FAA L-893(L)
This product is available in our webstore – Shop Now
Compliance with Standards
• FAA Certified to AC 150/5345-55A with AC 150/5370-2G and NTSB Safety Recommendation A-03-05
• FAA Buy American Waiver issued
Applications
Our Runway Closure Marker is an effective method to warn pilots of closed runways and taxiways.
Options
• Optional Rear Hitch for tandem towing
• Optional Cover
• Optional Extended Service Kit
• Optional Pintle Hitch
• Optional Oil Drain Kit for easier oil changes
• Optional 24 hour Battery Backup: Lighted “X” automatically switches over to battery power when generator power is lost or turned off manually – fuel saving and emergency backup
Features
• Easily set up by one person in less than 5 minutes
• External power compatible, lighted “X” can be powered from an external power source from 120 to 277v 50/60 Hz
• 50,000 hour built in LED lamps – never change a bulb
• Reliable Mitsubishi L3E diesel engine with shore power output (20amp 120V and 30amp 240Volt)
• 140+ hour runtime between fueling
• Wind tested to 95 mph
• 2 year/2,000 hour engine warranty, 4 year lamp warranty
• Visible 10-25 miles from runway under VFR
• Photocell dimming for night operation
• DOT compliant trailer with lights, highway towable with a standard 2″ hitch
• Compact transporting and storage design
Runway Closure Marker Rental
We rent RCM-D Runway Closure Markers for temporary or emergency runway closures.
To request a rental, contact us and we’ll provide availability, pricing, and delivery options.
Light Assembly Specifications
• Arm length 14 feet when operating
• Hinged to generator housing, swings upright for use, swings to horizontal position when stowed
• Assembly arms fold to a 5′ x 5′ square for transport and storage
• Arms constructed of 4″ x 4″ extruded aluminum, with yellow epoxy powder-coat paint
• Twenty LED lamps mounted in front, plus 4 monitor lamps in rear, 24 total
• LED lamp, 20° beam width, rated life 50,000 hour typical
• Lamps flash 2.5 seconds on, 2.5 seconds off
• Solid-state flasher, no mechanical contacts
• Photocell automatically reduces intensity at night
• Maximum Power: 630 watts, 643VA at 120VAC
Engine Specifications
• Engine: 3-cylinder diesel, 12.7 hp, liquid-cooled, 4-stroke, 1,800 RPM, electric start
• Engine Warranty: 2 years/2,000 hour
• Glow plugs and elapsed hour meter
• Low oil/high temperature auto-shutdown
• Generator: Marathon Electric, 6.0 kW, 120/240VAC 60Hz, 4-pole, brushless
• Fuel tank capacity 57 gal., consumption 0.4 gph, 140+ hour runtime
Specifications
• Width: 67″, Length: 117″, Height: 69″, 1,405 lb. (dry)
• Total Wet Weight: 1,804 lb.
• Fully Crated: Width: 72″, Length: 96″, Height: 79″, 2,050 lb.
Warranty
• LED Lamps Warranty: 4 years
• Engine/Generator Warranty: 2 years/2,000 hour
• Trailer and all other components: 2 years
• Please see owner’s manual for specific warranty coverage specifications
Runway Closure Marker Set Up Procedure (5 minutes):

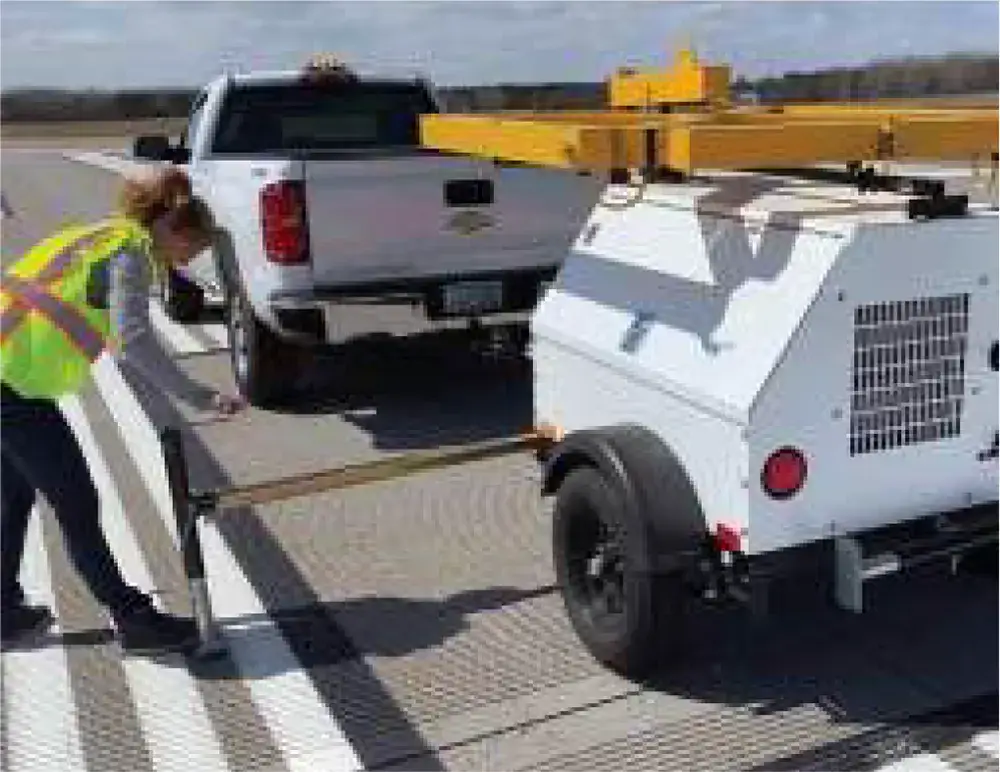

1. Level as necessary using 3 leveling jacks

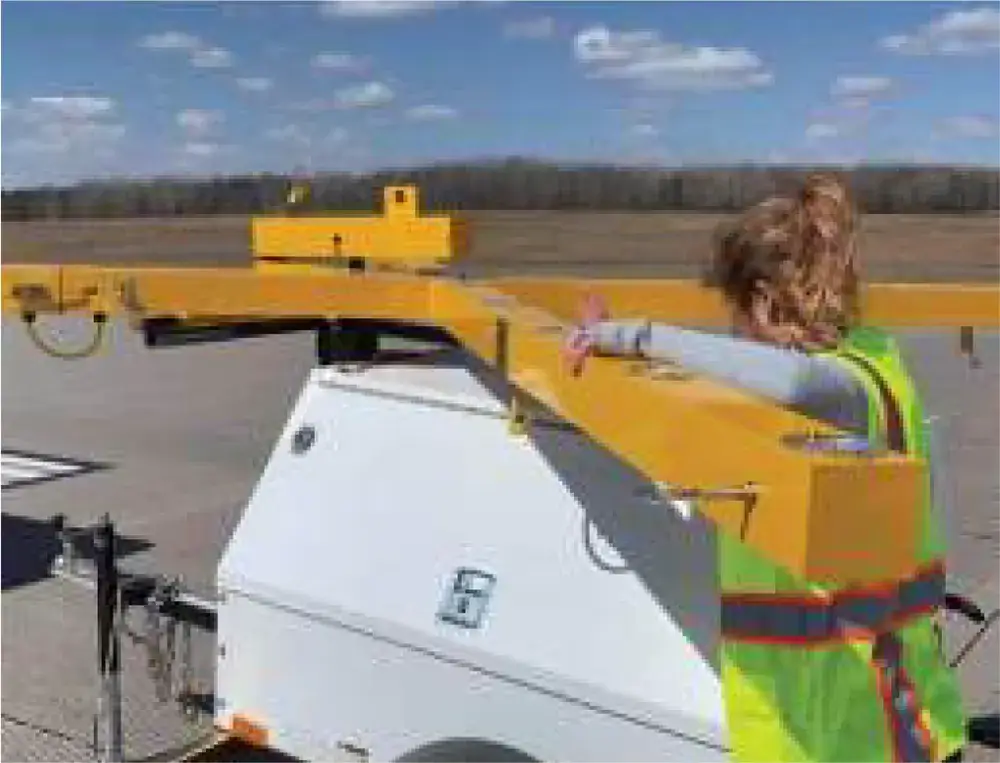

2. Extend the 4 light assembly arms
3. Tilt the light to the upright position

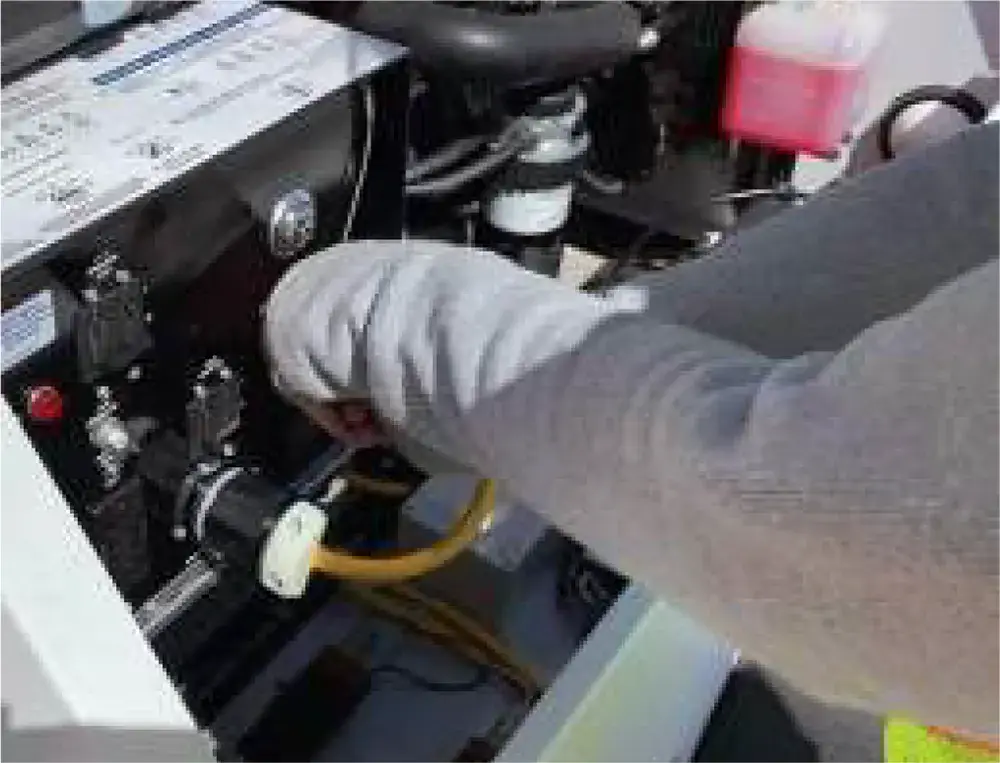

4. Start the generator and activate the lights

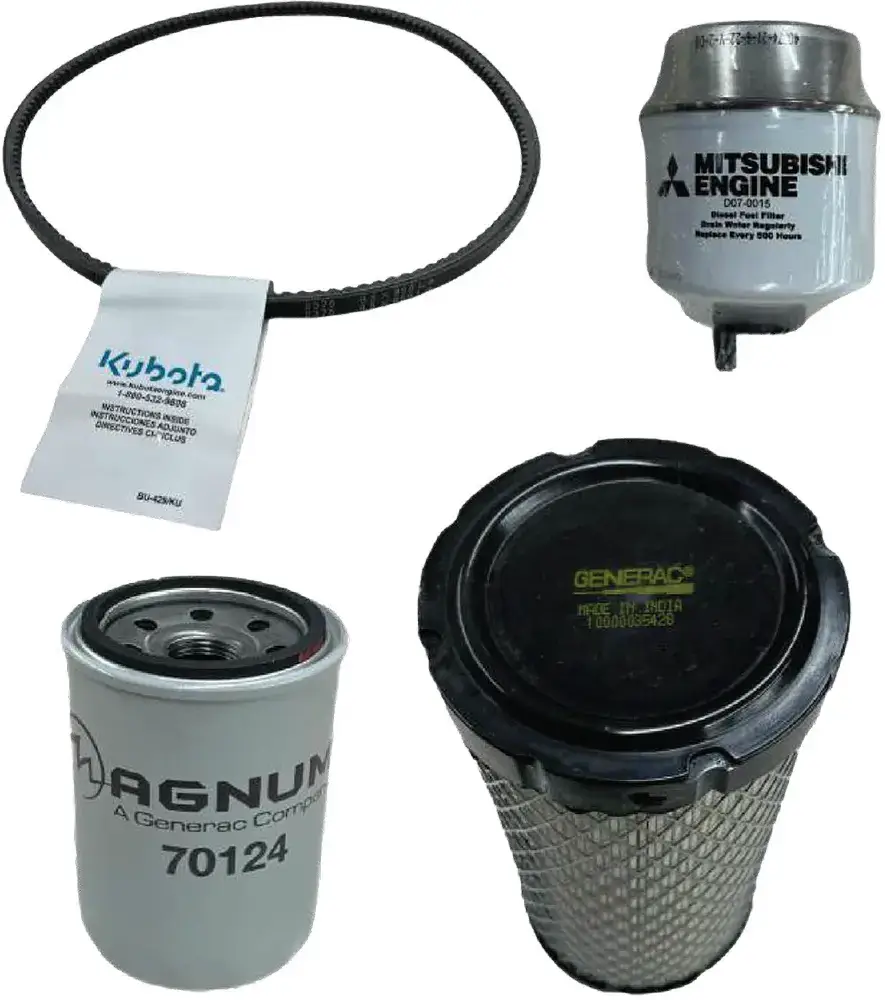

RCM-Extended Service Kit
Features
• Premium OEM filters
• Convenient kit vs ordering separately
• Internal record keeping for your machine to show service was ordered, should a warranty issue ever arise
Ordering
• RCM-SK170 (1,000 Hour Kit)
– 4 Oil Filters
– 4 Fuel Filters
– 2 Air Filters
– 1 Belt
• RCM-SK171 (2,000 Hour Kit)
– 8 Oil Filters
– 8 Fuel Filters
– 4 Air Filters
– 1 Belt

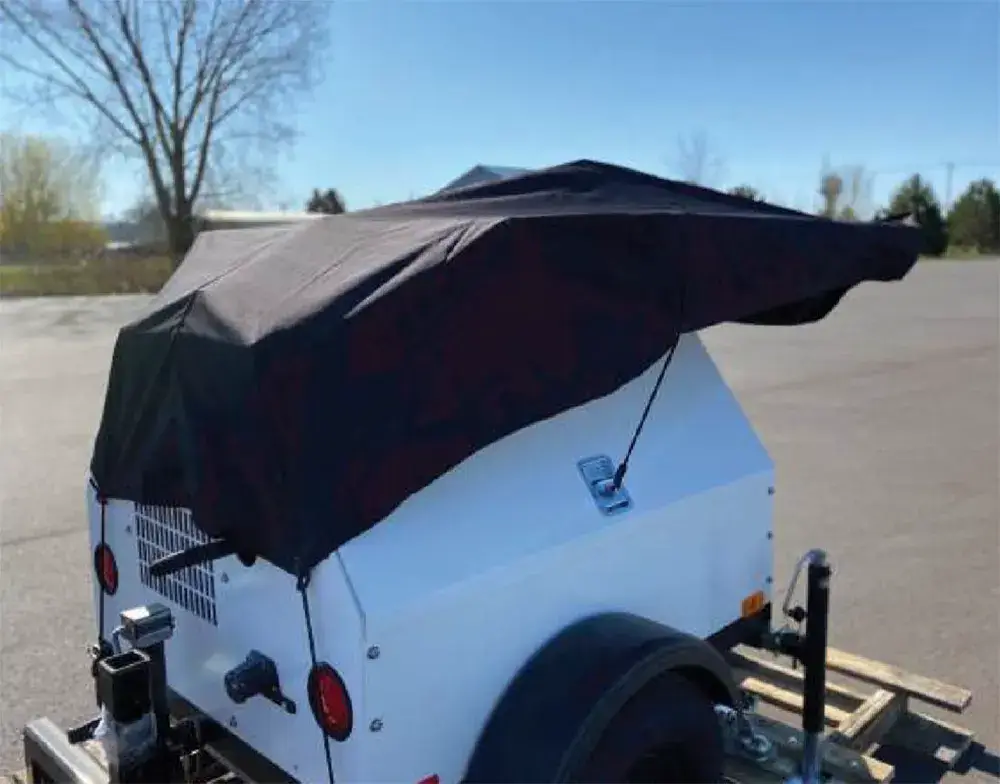

Custom Fitted Cover
Features
• Durable, long lasting cover
• Easy, 1 person application

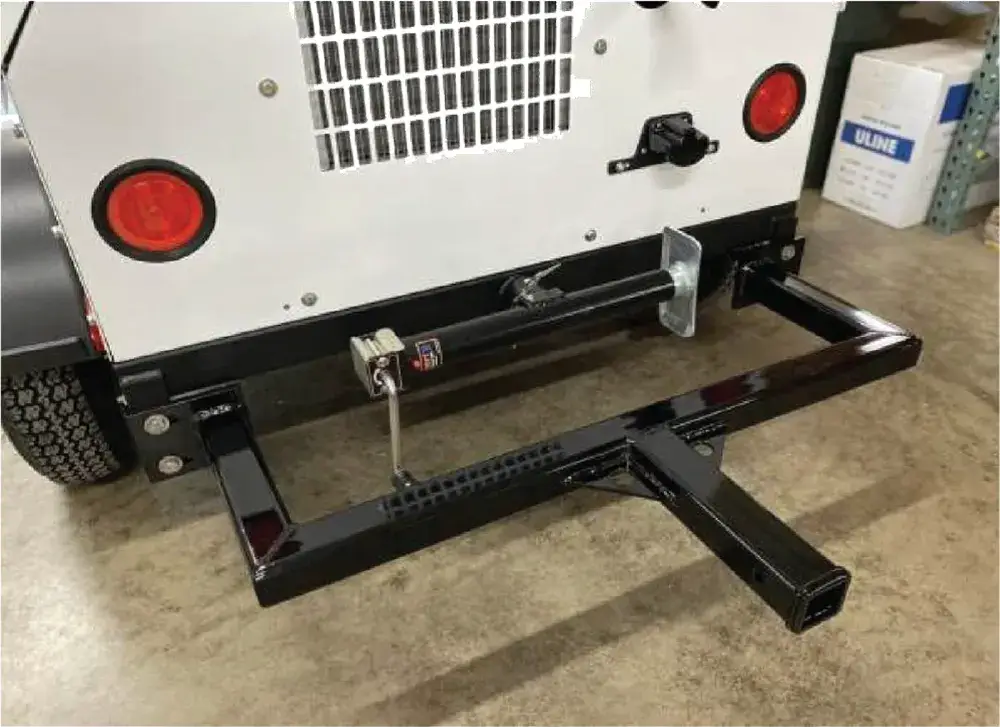

Rear Receiver Hitch
Features
• For towing tandem RCM units
• Easy 4 bolt installation

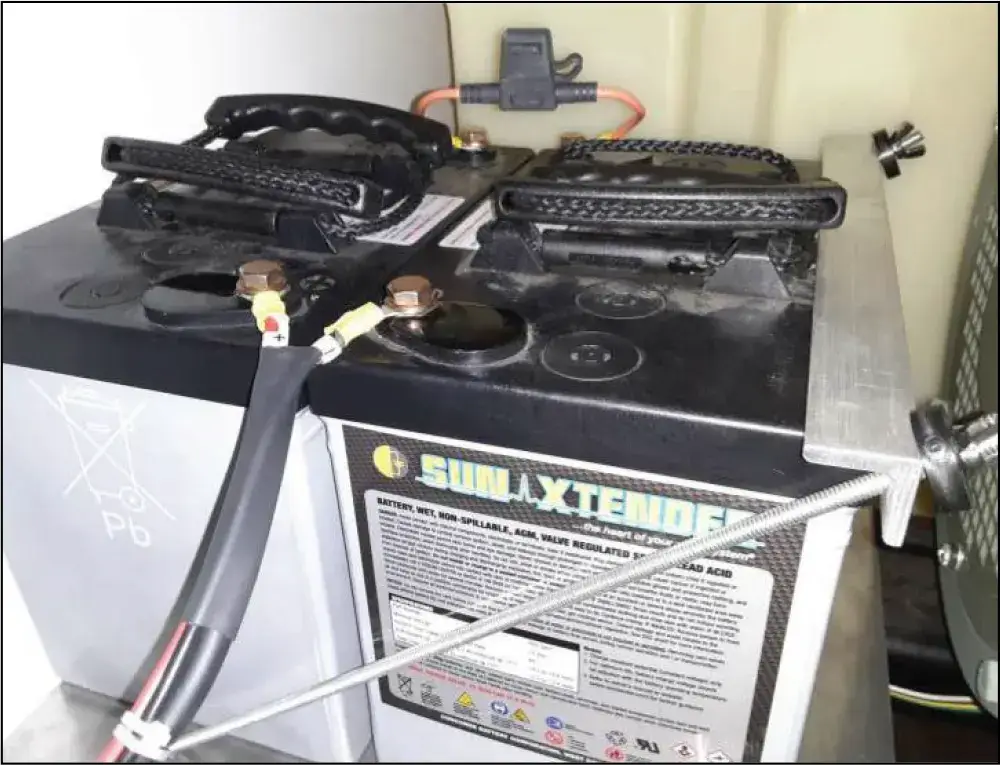

RCM-Battery Backup Option
Applications
• The Runway Closure Marker battery backup option automatically switches to battery backup when generator power is lost or turned off.
• Use for automatic battery backup for safety in the event of generator power loss.
• Use for fuel savings: For example, run the generator during the daytime work hours. Then manually turn the machine off at the end of the shift. The lighted “X” will continue to function overnight using no fuel. When the next morning shift starts, the machine would be manually restarted and run during the daytime shift, operating the lights and recharging the batteries. Repeat.
Features
• 2 premium deep cycle, long lasting batteries
• 24 hour operation on fully charged batteries
• Machine starting battery completely separate from battery backup system
• Automatic power sensing relay, automatically senses power loss and switches to battery
• Manual override switch conveniently located on main control panel
• High quality, on-board charger specifically calibrated for RCM battery backup system, resulting in longer battery life
RCM-ADAPTERCORD Shore Power Adapter Cord
Applications
When “shore power” is available, the lighted “X” can be operated on any external power source from 110-250Volt, 50/60hz. This option is great for fuel and maintenance savings.
Use
• Lighted “X” plug is 30amp 250V (NEMA L6-30P)
• RCM-ADAPTERCORD is a short 2′ cord that converts the 30amp 250V plug to a standard 120v 15amp plug.
• Simply unplug the lighted “X” from the generator control panel, plug in the adapter cord, then plug the 120v plug into any common outlet or extension cord. The lighted “X” will begin to flash.

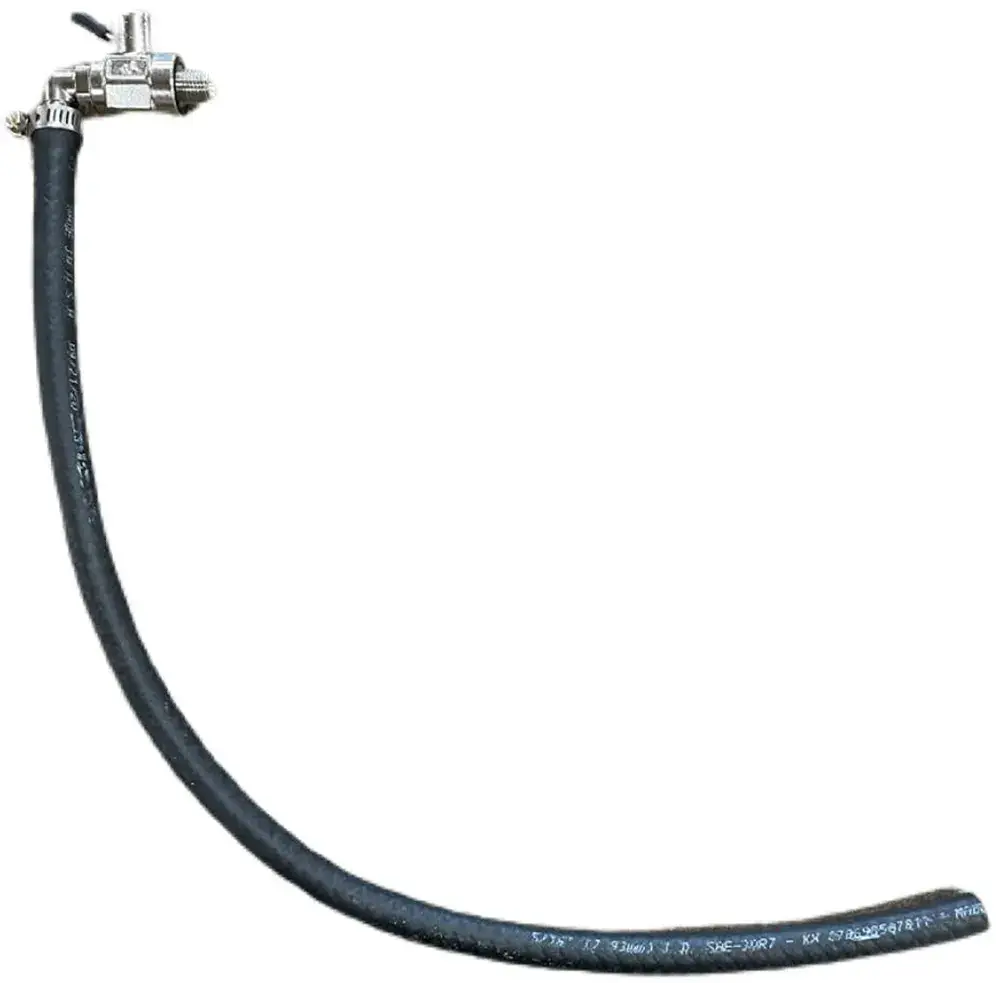

RCM-OILVALVE Oil Valve Kit
Applications
When installed, simply turn valve for oil draining instead of using tools to remove plug. Comes with extended drain hose for easy and clean routing of oil while draining.
