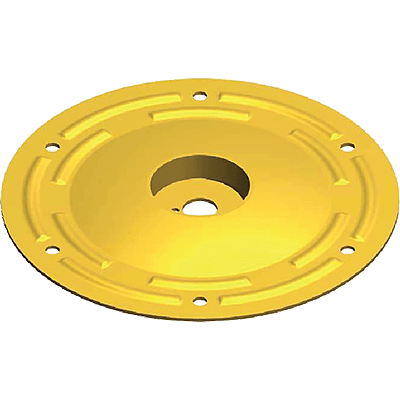

L-867B & L-867D Corten Base Plate
This product is available in our webstore – Shop Now

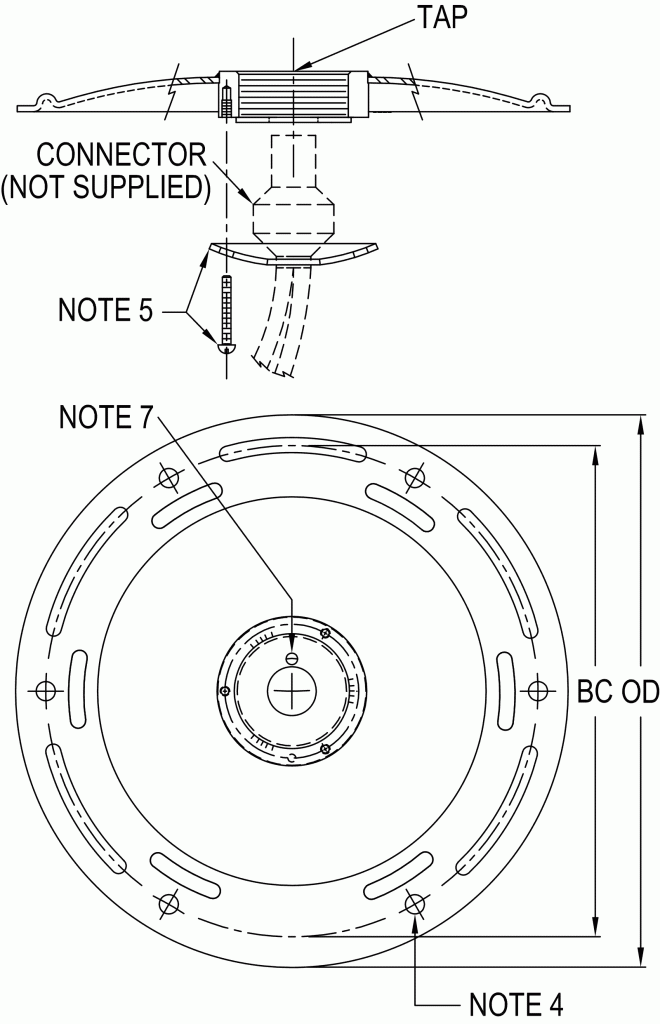

Notes
1. ETL Certified L-894 Elevated Light Covers (FAA AC 150/5345-42J)
• Sizes: 12″ L-867B & 16″ L-867D
• Ground required
2. Material: .109″ min. thickness Corten A606 steel
3. Finish: Aviation yellow powder coat
4. (6) 7/16″ Ø equally spaced, thru holes
5. Base plate shipped with:
• Neoprene gasket:
12″ L-867B: BA-2052
16″ L-867D: BA-6052
• Hardware pack up #6120 which contains:
(1) 3 hole cable clamp (8089)
(3) #10-24 x 1-1/2″ SS machine screws (10670781)
6. Grounded version available (see p.K-01f): Add “G” suffix to part number
7. (1) 1/4″ Ø Weep Hole Standard. Add “AK” suffix to P/N for baseplate w/o weep hole. Foam Gasket & 6120 pack up (Alaskan Application)
8. Other thread types available (e.g. 2″-11 BSP)
Ordering Codes
| Part # | Type | OD (mm) | BC (mm) | Tap (mm) |
|---|---|---|---|---|
| BA-1932 | 12″ L-867B | 12″ (304.8) | 10.25″ (260.4) | 2″ (50.8) NPS |
| BA-1935 | 12″ L-867B | 12″ (304.8) | 10.25″ (260.4) | 1-1/2″-12 (38.1) NF |
| BA-2932 | 16″ L-867D | 16″ (406.4) | 14.25″ (362) | 2″ (50.8) NPS |
| BA-2935 | 16″ L-867D | 16″ (406.4) | 14.25″ (362) | 1-1/2″-12 (38.1) NF |
| * Ground required for ETL certification. Add “G” suffix to part number. | ||||
