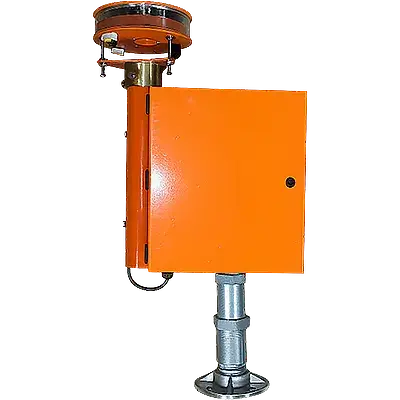

L-859(L) Omni-Directional Approach Light | LED ODAL
Compliance and Applications
• FAA: AC 150/5345-51, EB67, ETL Certified
• Sections 5.3.1, 5.3.5 and 5.3.10

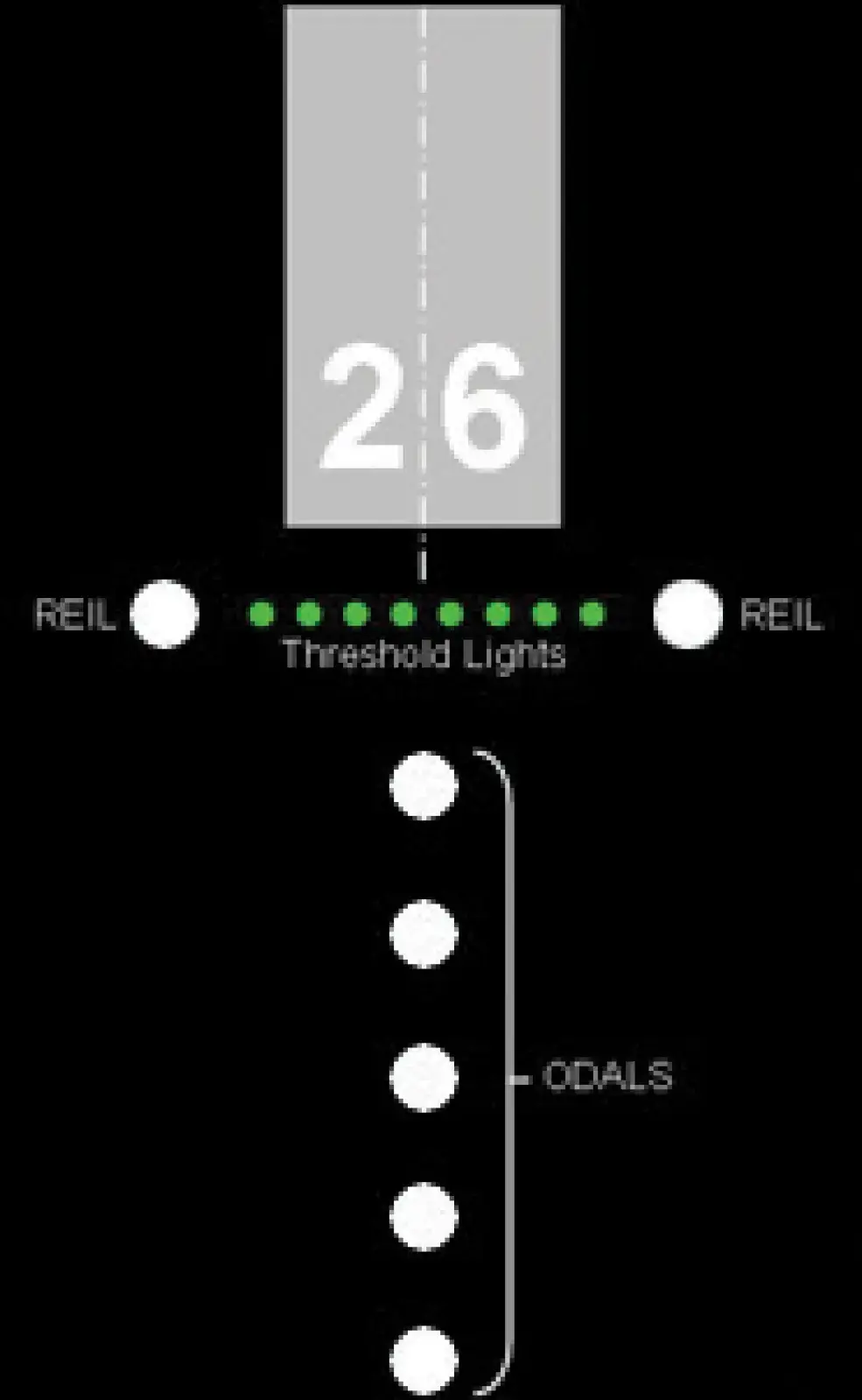

The primary application of an LED ODAL system is to positively identify the runway end or threshold of a visual or nonprecision instrument runway. An ODAL system consists of two synchronized flashing lights at the runway end and five sequential flashing lights aligned with the runway centerline to guide pilots to the runway.
Features
• Lower cost of ownership
• High, medium and low intensity
• Robust primary control signal
• Field programmable sequence timing
• No power adapter required
• True RMS current sensing
• Current sensing set-up required at the primary unit only
• Co-mounted or separate mounted flashhead
• 50 or 60 Hz
• Flash monitoring
• Elapsed time meter
• Long-life LED for years of service

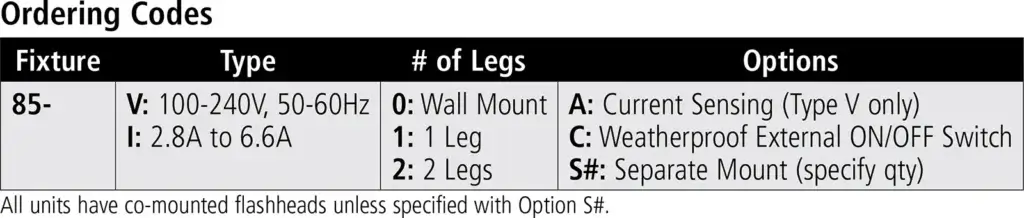

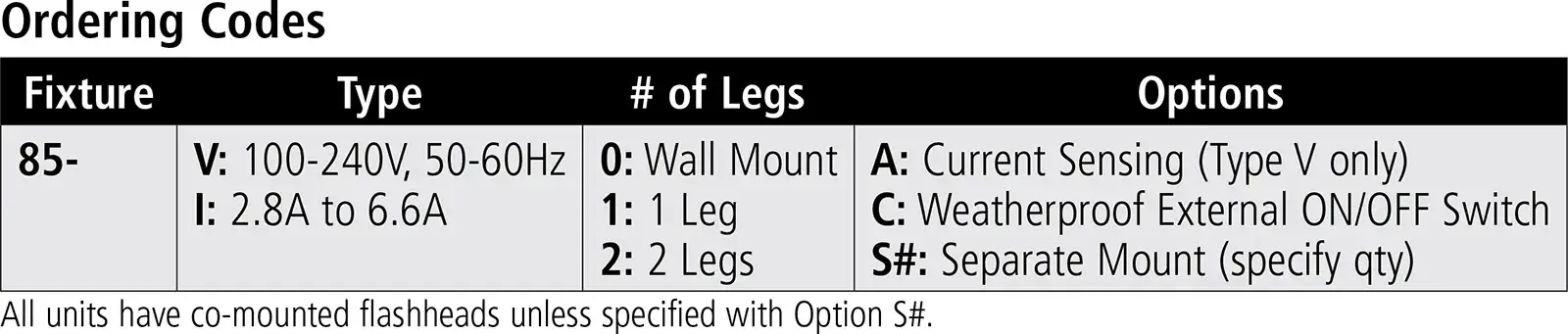

Ordering Codes
| Fixture | Type | # of Legs | Options |
|---|---|---|---|
| 85- | V: 100-240V, 50-60Hz I: 2.8A to 6.6A |
0: Wall Mount 1: 1 Leg 2: 2 Legs |
A: Current Sensing (Type V only) C: Weatherproof External ON/OFF Switch S#: Separate Mount (specify qty) |
| All units have co-mounted flashheads unless specified with Option S#. | |||
