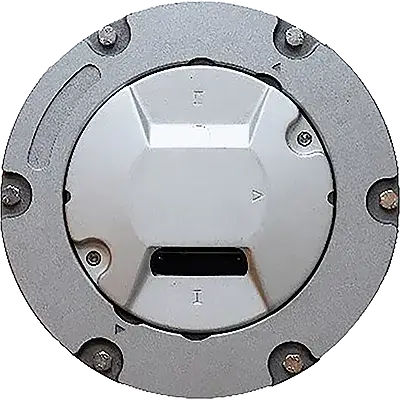

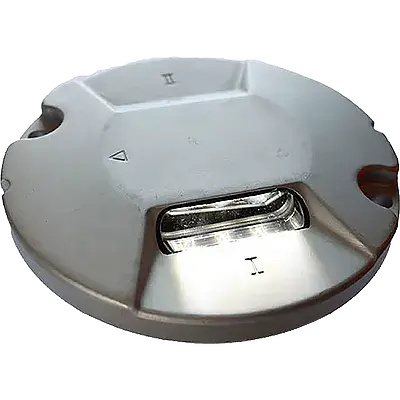

L-850B(L) LED Inset Unidirectional High Intensity Lights

Compliance and Applications

• FAA: AC150/5345-46, L-850B(L), Engineering Brief No. 67, ETL Certified
• ICAO: ANNEX 14 PARA 5.3.12, 5.3.13
• IEC: 61827
• Canada: TP 312

Used for Runway Touchdown Zone and Medium Intensity Approach Lighting Systems with economic, long-life LED modules

Features

• Low profile <0.25" (6mm) FAA Style 3
• Lightweight aluminum forging top section provides superior mechanical strength and durability
• Easily replaceable non-sealed type prism
• Long-life LED, >50,000 hours

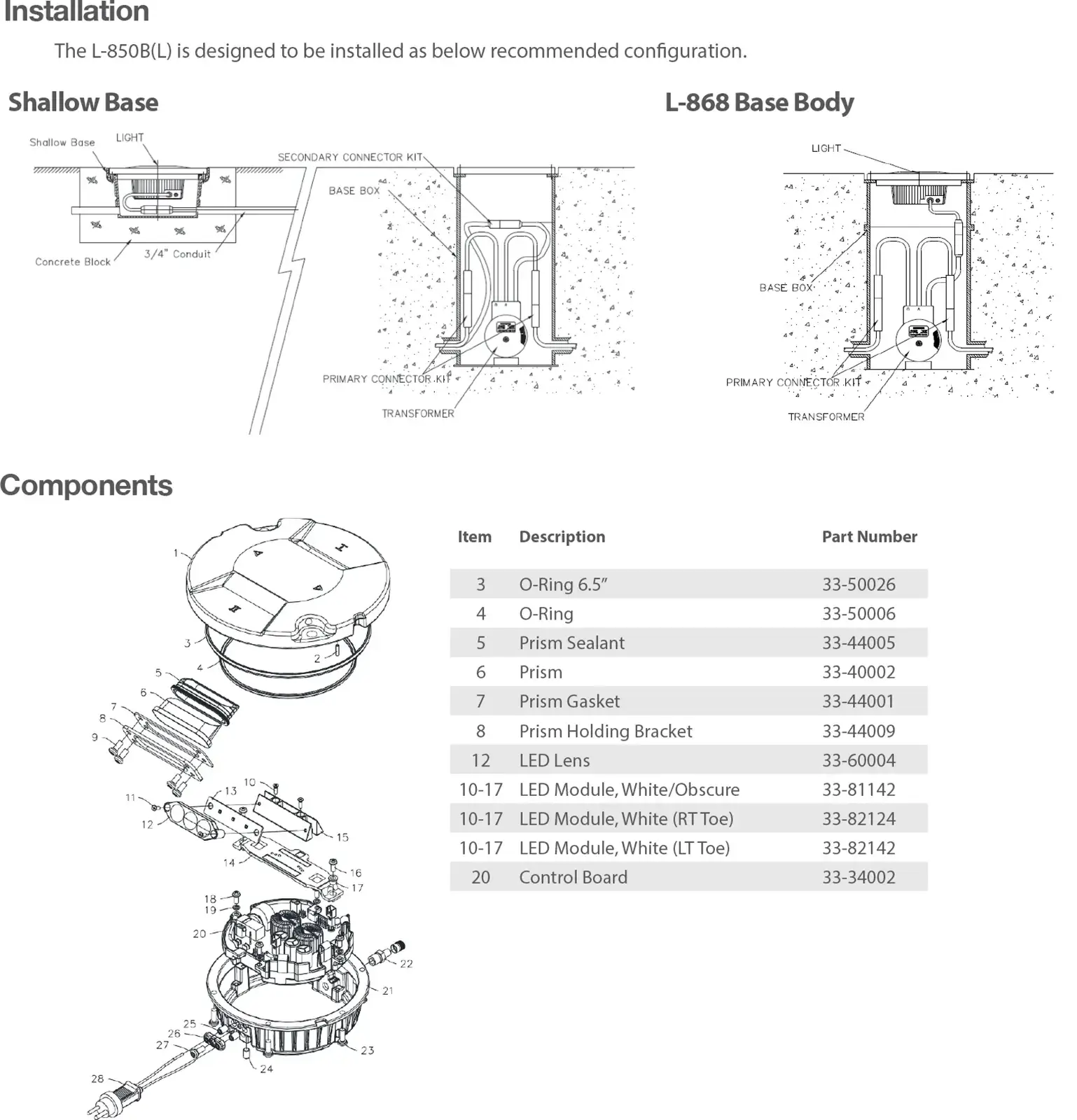

• Direct mounting on standard FAA L-868 Base with FAA Support Ring
• Compatible with all CCR types
• Protection Class: IP68

Specifications

• Input Power: 2.8~6.6A
• Power Consumption (Isolation Transformer): White: 33VA (45W)
• Long-life LED, >50,000 hours
• Low profile: <0.25" (6mm)
• Minimum Average Intensity data: 5,427cd(W) / 1038cd(R)
• Chromaticity data: White (x 0.348, y 0.353), Red (x 0.695, y 0.301)

Operating Conditions

• Operating Temperature: -40°F to +131°F (-40°C to +55°C)
• Storage Temperature: -67°F to +131°F (-55°C to +55°C)
• Ingress Protection: IP68
• Salt Fog: Per FAA AC 150/5345-46
• Temperature Shock: Per FAA AC 150/5345-46
• Humidity: 0~100%

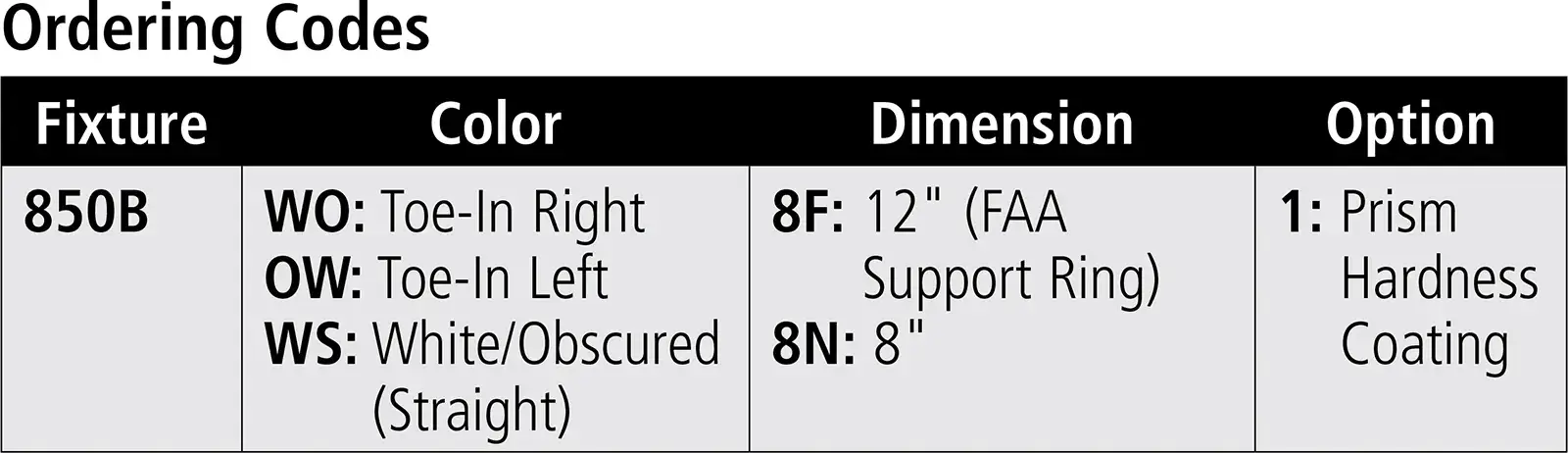

Ordering Codes
