IR852T | L-852T(L) IRIS LED 8″ Taxiway and Apron Edge, Omni-Directional, High Intensity Lighting Solutions
This product is available in our webstore - Shop Now
Compliance and Applications
• ICAO Annex 14. Vol 1
• FAA AC 150/5345-46
• FAA Engineering Brief No. 67
• IEC 61827
• EASA
• Stannag 3316 (NATO)
IRIS LED high intensity, omni-directional taxiway and apron edge fixture suitable for CAT III all weather operation airfield ground lighting (agl) systems. The goal of the IRIS range is to enhance the efficiency of an airfield by optimizing power consumption, increasing reliability and reducing costs to the airport.
Packaging
• Net weight: 6.6 lb. (3Kg)
• Gross weight: 7.7 lb. (3.5Kg)
• Box: 9.1" (230mm) (w) x 9.1" (230mm) (d) x 5.7" (146mm) (h)

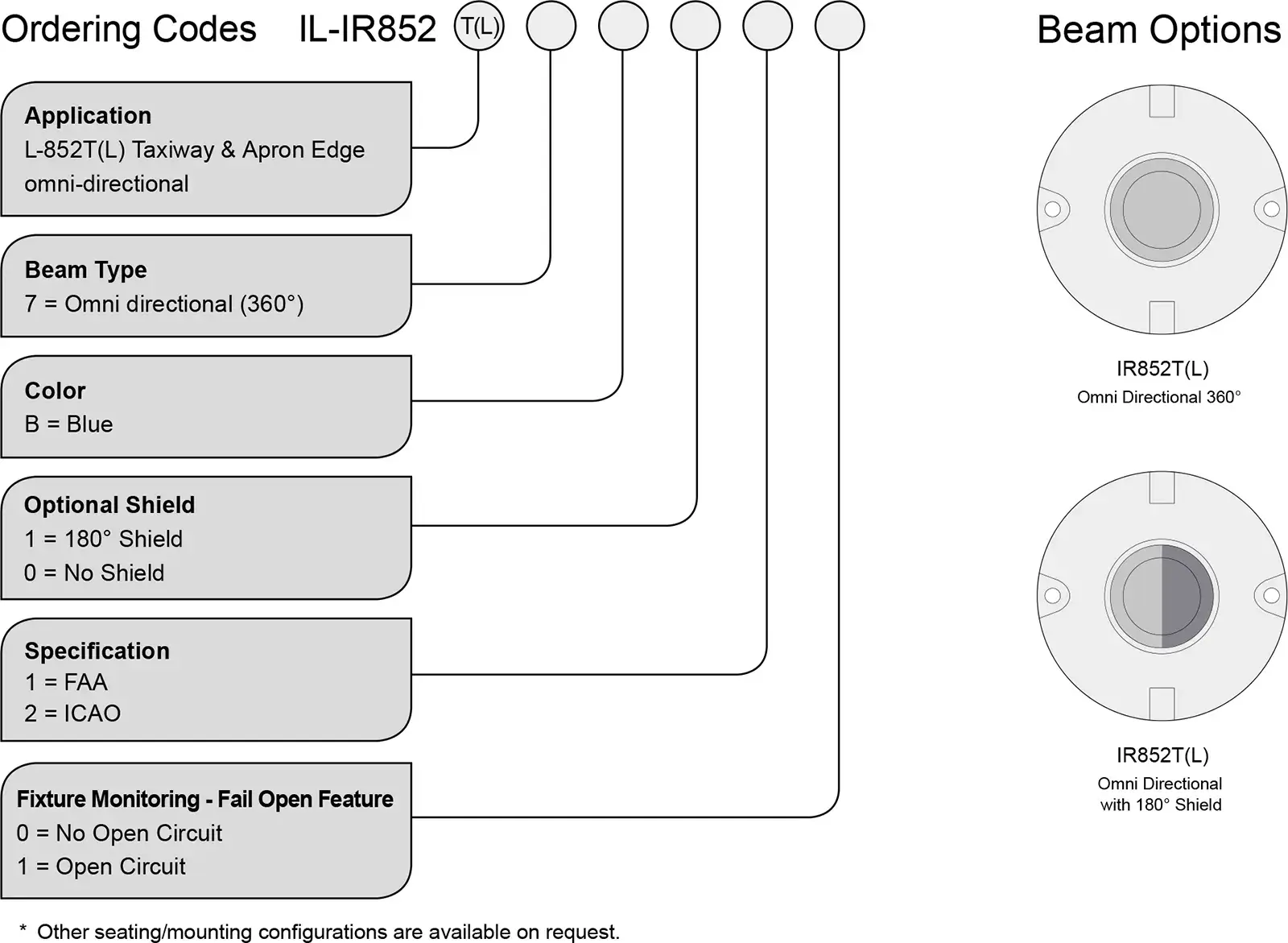

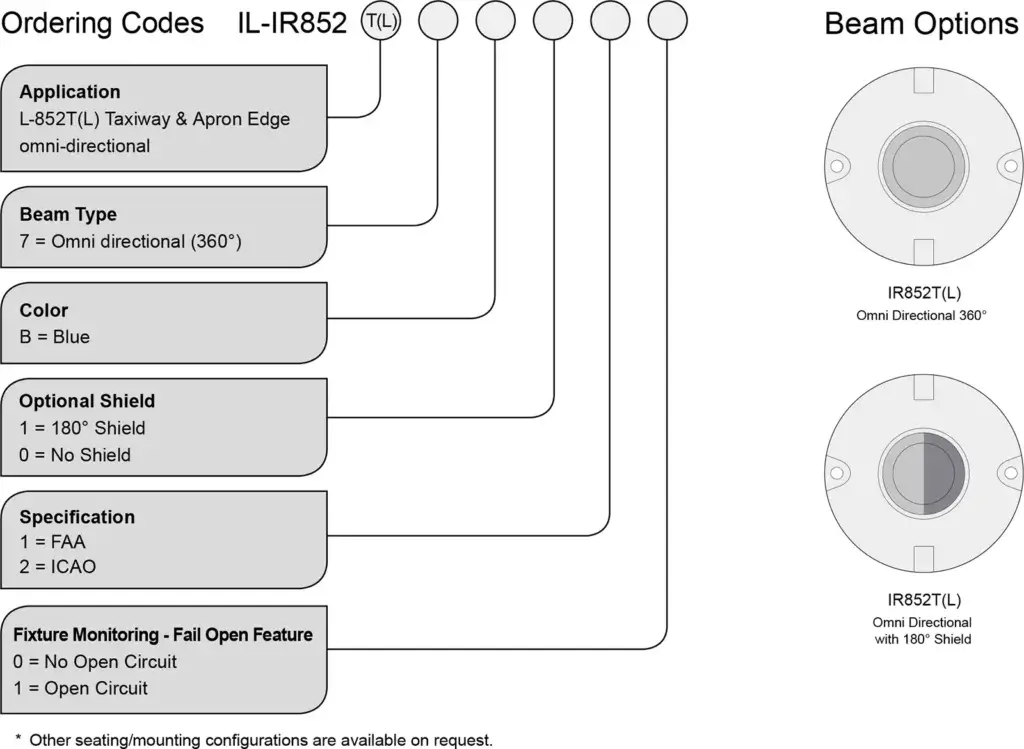

Ordering Codes
| Model | Application | Beam Type | Color | Optional Shield | Specification | Fixture Monitoring - Fail Open Feature |
|---|---|---|---|---|---|---|
| IR852 | T(L): L-852T(L) Taxiway & Apron Edge omni-directional | 7: Omni directional (360°) | B: Blue | 1: 180° Shield 0: No Shield | 1: FAA 2: ICAO | 0: No Open Circuit 1: Open Circuit |
| * Other seating/mounting configurations are available on request. | ||||||
