Adapter Ring for 12″ L-868B Base Can to 8″ Inset Fixture
This product is available in our webstore – Shop Now
Compliance and Applications
Certified to FAA AC 150/5345-42 (Current Revision), Size: B=12″
Adapter ring for mounting 8″ diameter (7.25″ BC) inset fixture to 12″ L-868B base can.
Specifications
• Ductile iron castings with a black powder coat finish
• (6) 7/16″ Ø equally spaced, thru holes with 1-1/8″ Ø x 1/2″ deep counter bore
• (6) 3/8″-16 tapped holes
• Adapter rings are shipped with:
– (2) 3/8″-16 x 1-1/4″ stainless hex head cap screws
– (2) 3/8″, 2 piece locking washers
– (1) Bolt Set containing:
+ (6) 3/8″-16 x 1″ stainless hex head cap screws
+ (6) 3/8″, 2 piece locking washers

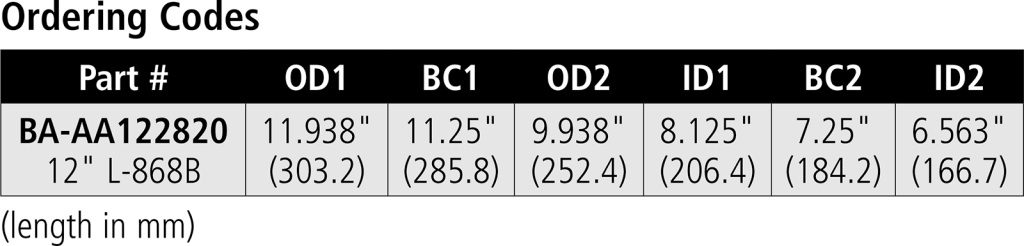

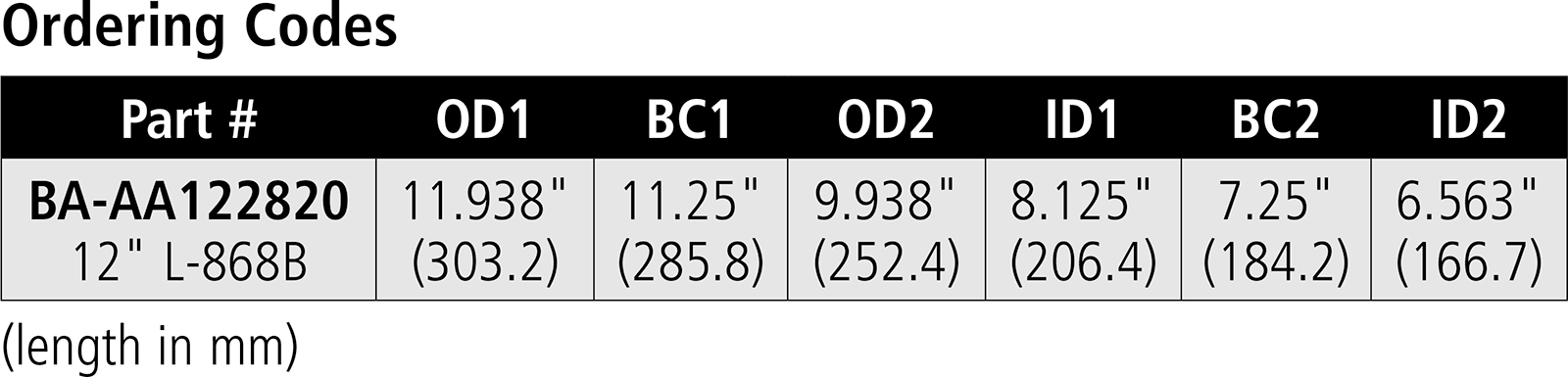

Ordering Codes

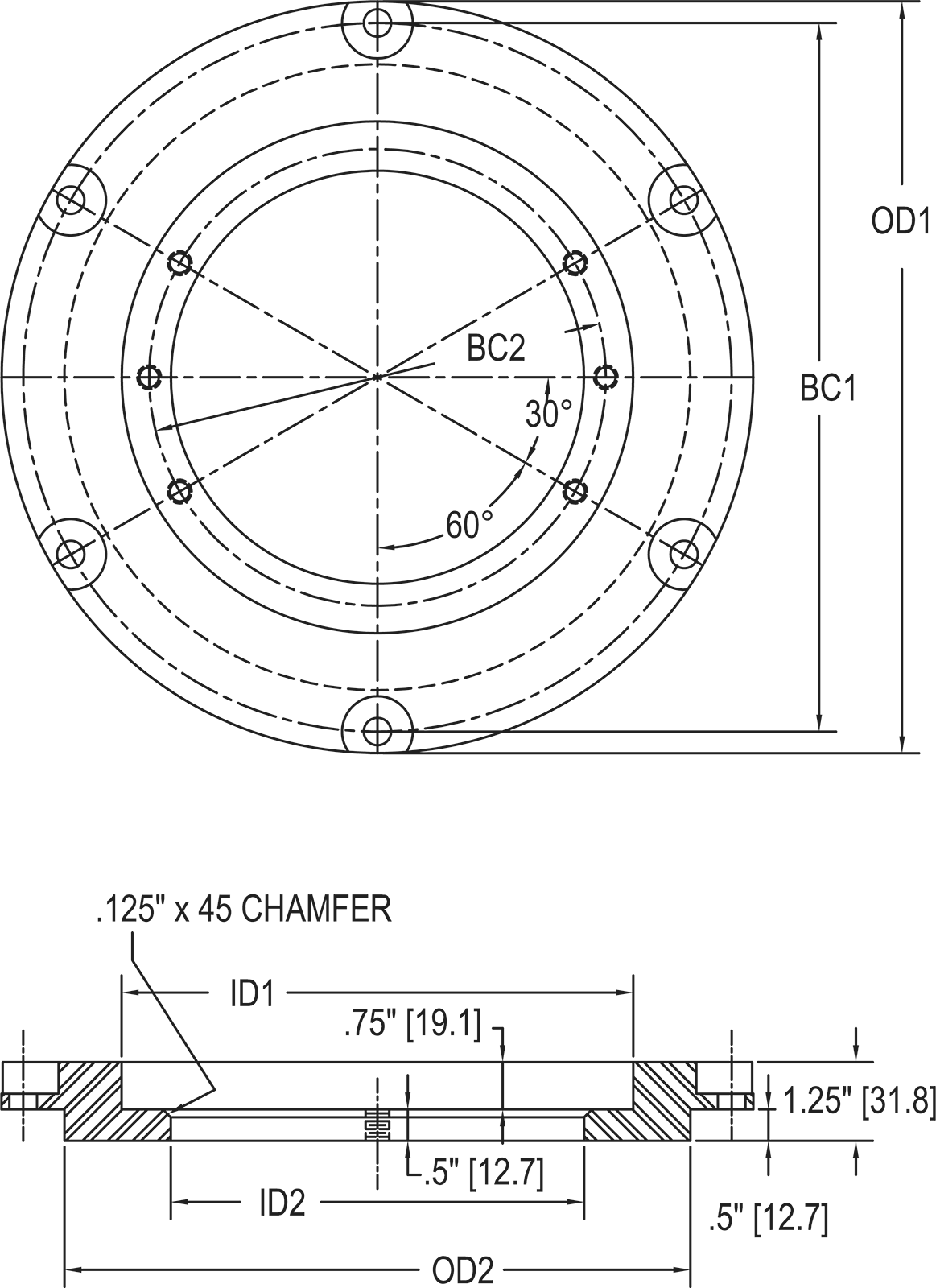

| Part # | OD1 | BC1 | OD2 | ID1 | BC2 | ID2 |
|---|---|---|---|---|---|---|
| BA-AA122820 12″ L-868B |
11.938″ (303.2) | 11.25″ (285.8) | 9.938″ (252.4) | 8.125″ (206.4) | 7.25″ (184.2) | 6.563″ (166.7) |
| (length in mm) | ||||||
