WCH Series Wind Cone AC and Solar Powered L-806 (Frangible)
Downloads
This product is available in our webstore – Shop Now

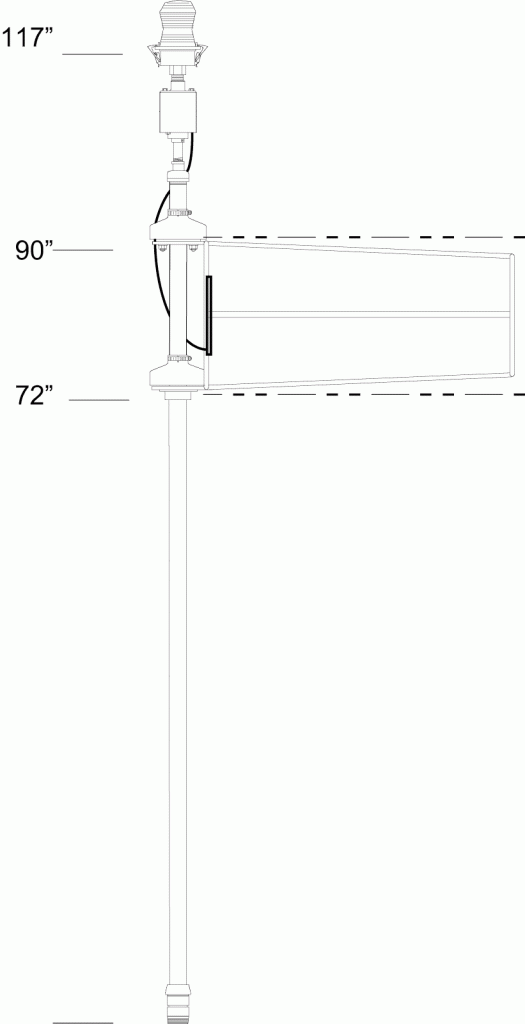

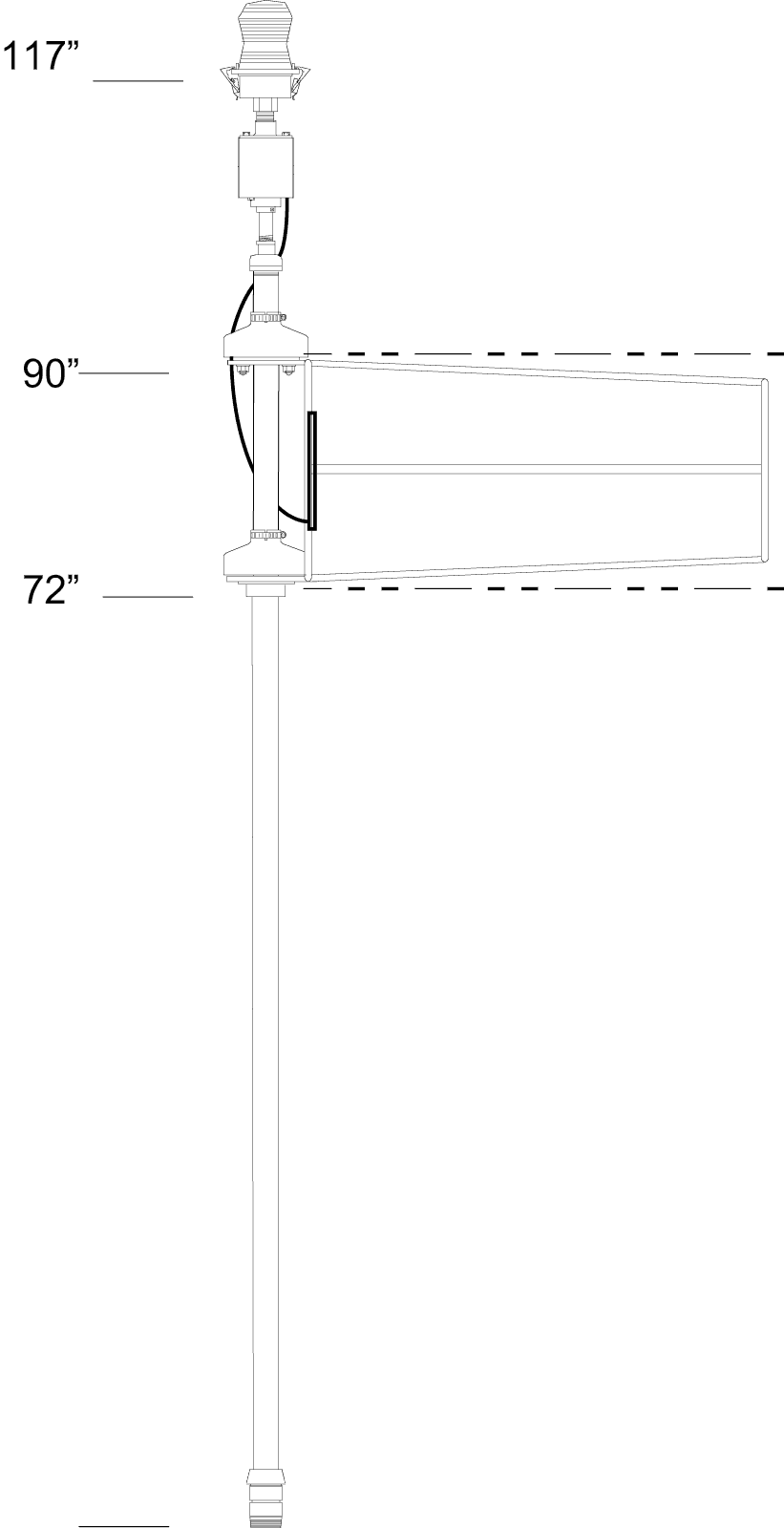

L-806 & L-806(L) Wind Cone
Compliance and Applications
• ETL Certified L-806 & L-806(L): FAA AC 150/5345-27F
L-806 wind cones provide visual indication of wind direction and velocity for pilots on small airfields, heliports, vertiports and as supplemental wind indicators near runway touchdown areas on larger airfields.
Features
• Perfect for small airports, heliports and vertiports
• Pre-assembled bearings and one-piece welded aluminum basket, and center hinged pole for easy installation
• Mounting options include: roof, wall, floor flange, 2″ NPT conduit or L-867 base plate (sold separately)
• Available externally lighted, internally lighted, or unlighted
• 50,000 to 100,000 hour LED lamp life, virtually maintenance free
• LED lamps consume 80-90% less power than halogen lamps
• Night Vision Goggle (NVG) compatible obstruction light
• Solar Power Supply Option available; no more long underground wire and conduit installations
• Wind sock included, Size 1 (18″ diameter x 8′ long) sock (berry compliant) treated for rot, mildew, and water repellent
• Marine Treated Option (recommended for installations within 100 miles of saltwater) available for increased useful life in corrosive environments
• Powder coat painted international orange
• 4 year warranty on LED lamps, 2 year warranty on wind cone
• Designed to operate at any ambient temperature between -67°F (-55°C) and +131°F (+55°C)
• Designed to withstand winds up to 75 knots (86 mph or 140 km/hr)
• Windsock moves freely about the vertical shaft it is attached to when subjected to wind of 3 knots (3.5 mph or 5.6 km/hr) or more and indicates the true wind direction within ±5°
• Windsock extends fully when subjected to wind of 15 knots (17.8 mph or 28.7 km/hr)
Marine Treated Option
Recommended for high salt and other corrosive environments. Includes: marine treated powder coat, stainless steel hardware throughout.

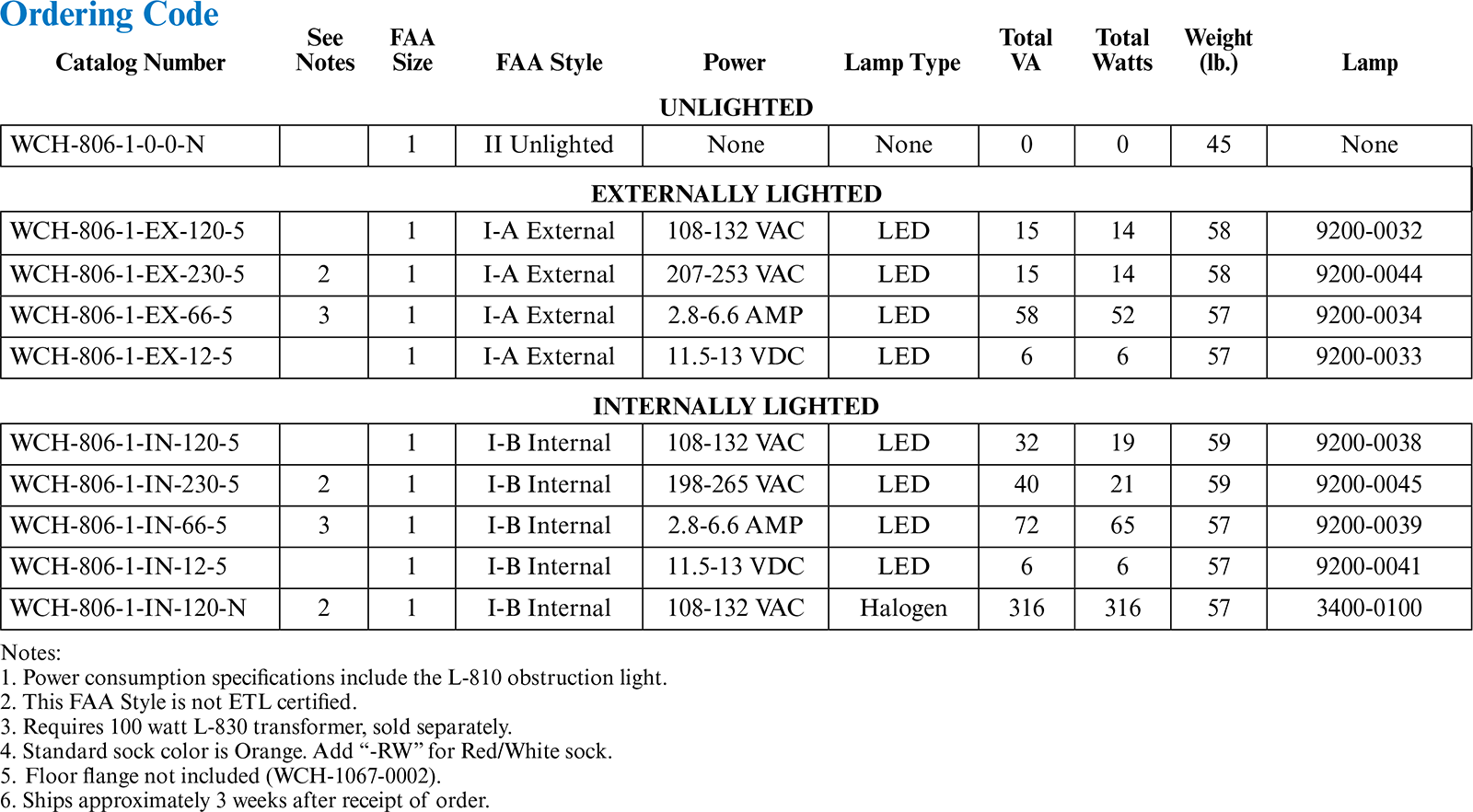

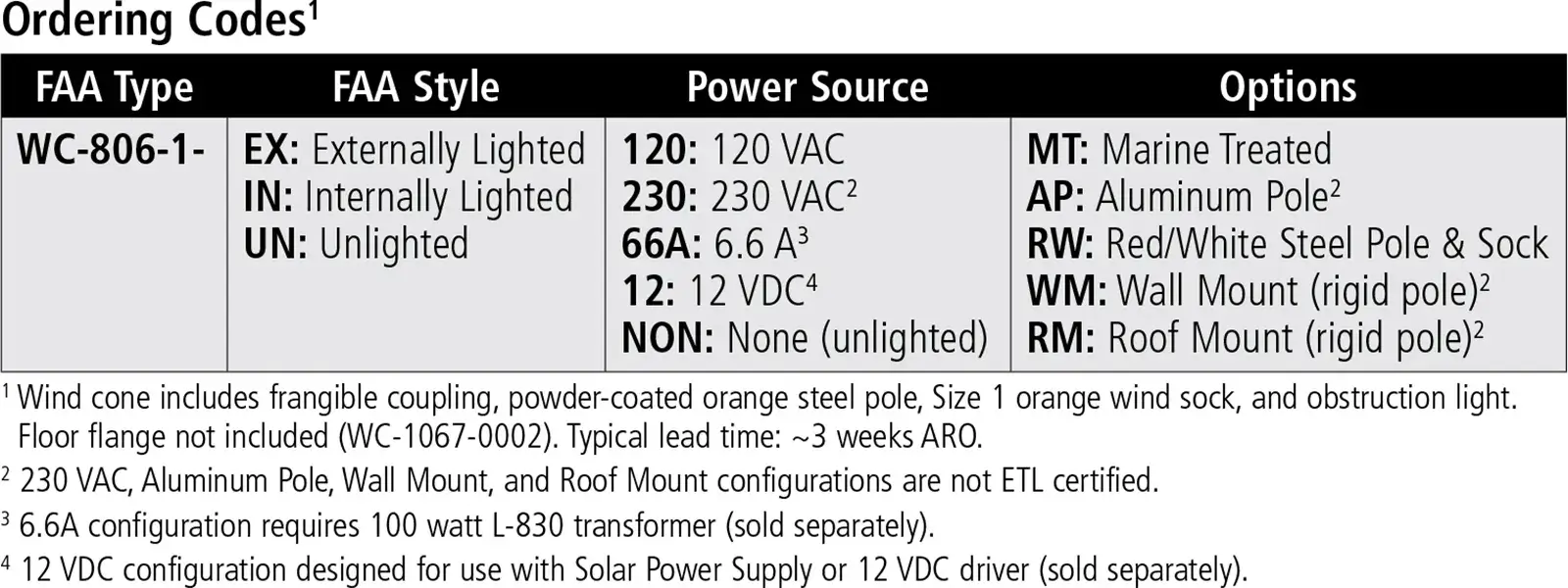

Ordering Code

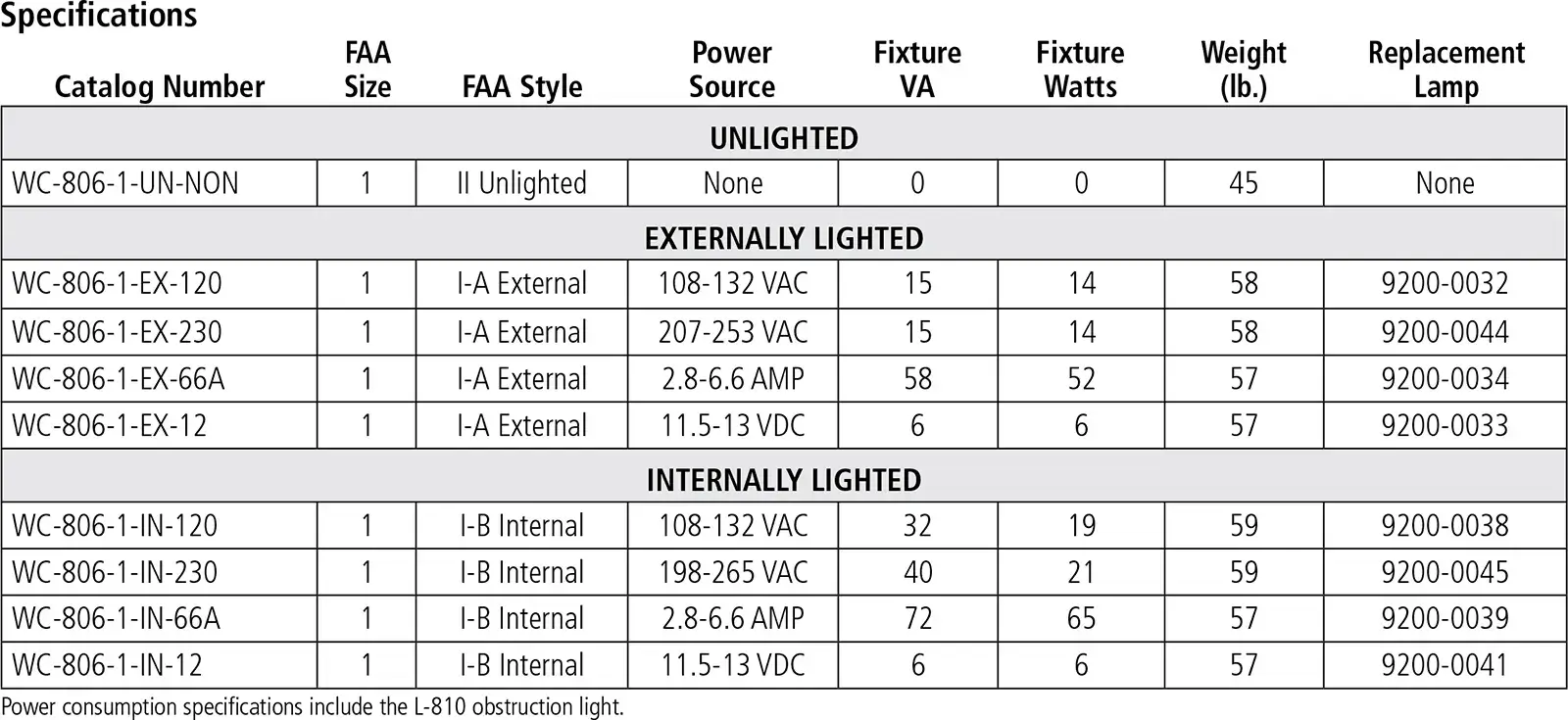

| Catalog Number | See Notes | FAA Size | FAA Style | Power Source | Fixture VA | Fixture Watts | Weight (lb.) | Replacement Lamp |
|---|---|---|---|---|---|---|---|---|
| UNLIGHTED | ||||||||
| WCH-806-1-0-0-N | 1 | II Unlighted | None | 0 | 0 | 45 | None | |
| EXTERNALLY LIGHTED | ||||||||
| WCH-806-1-EX-120-5 | 1 | I-A External | 108-132 VAC | 15 | 14 | 58 | 9200-0032 | |
| WCH-806-1-EX-230-5 | 1 | 1 | I-A External | 207-253 VAC | 15 | 14 | 58 | 9200-0044 |
| WCH-806-1-EX-66-5 | 2 | 1 | I-A External | 2.8-6.6 AMP | 58 | 52 | 57 | 9200-0034 |
| WCH-806-1-EX-12-5 | 3 | 1 | I-A External | 11.5-13 VDC | 6 | 6 | 57 | 9200-0033 |
| INTERNALLY LIGHTED | ||||||||
| WCH-806-1-IN-120-5 | 1 | I-B Internal | 108-132 VAC | 32 | 19 | 59 | 9200-0038 | |
| WCH-806-1-IN-230-5 | 1 | 1 | I-B Internal | 198-265 VAC | 40 | 21 | 59 | 9200-0045 |
| WCH-806-1-IN-66-5 | 2 | 1 | I-B Internal | 2.8-6.6 AMP | 72 | 65 | 57 | 9200-0039 |
| WCH-806-1-IN-12-5 | 3 | 1 | I-B Internal | 11.5-13 VDC | 6 | 6 | 57 | 9200-0041 |
| Notes: 1. This model is not ETL certified. 2. Requires 100 watt L-830 transformer, sold separately. 3. Designed for use with Solar Power Supply or 12VDC Driver, sold separately 4. Wind cones come standard with frangible coupling, Size 1 orange wind sock and obstruction light. Add “-RW” for Red/White sock. 5. Power consumption specifications include the L-810 obstruction light. 6. Floor flange not included (WCH-1067-0002). 7. Ships approximately 3 weeks after receipt of order. |
||||||||

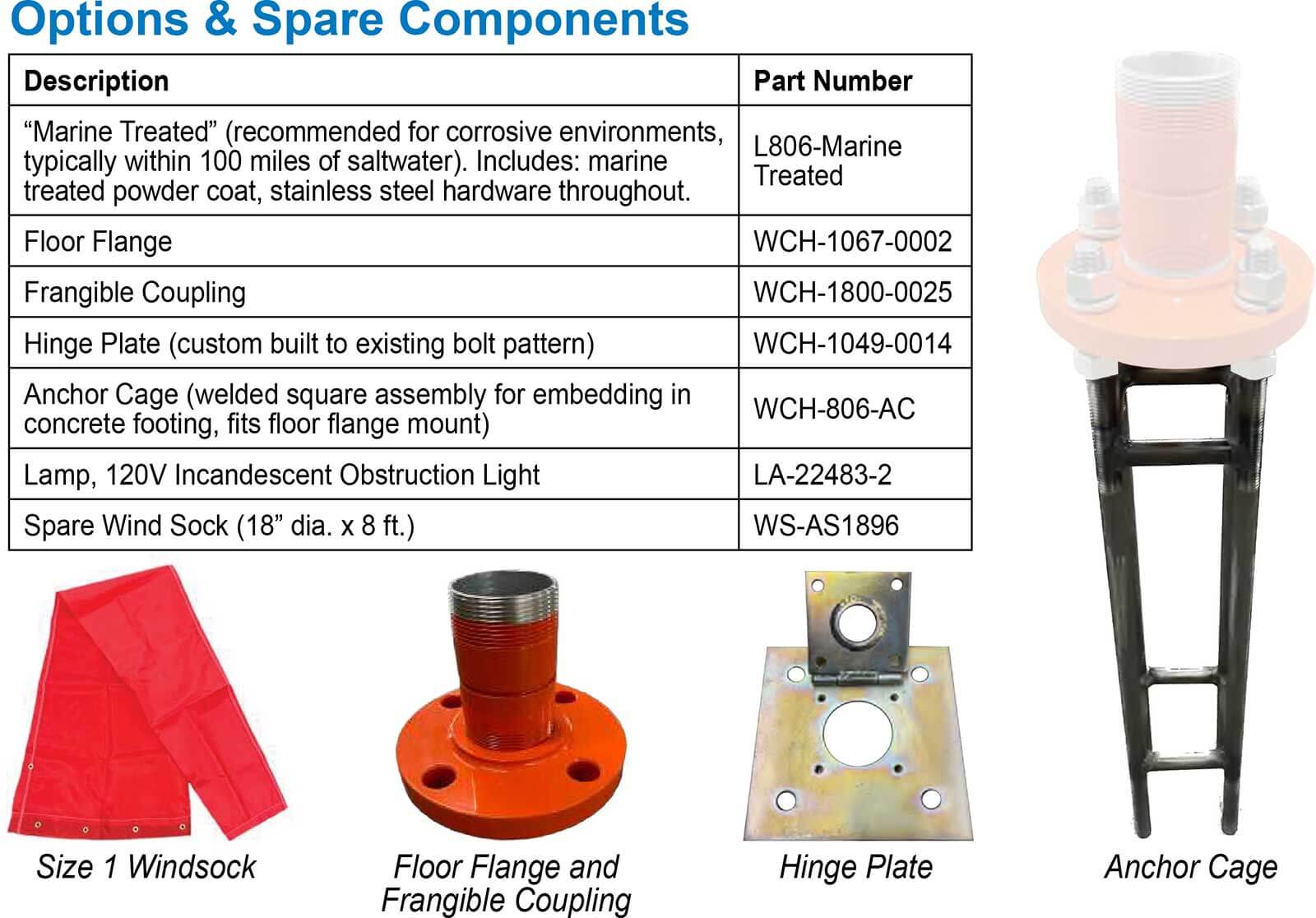

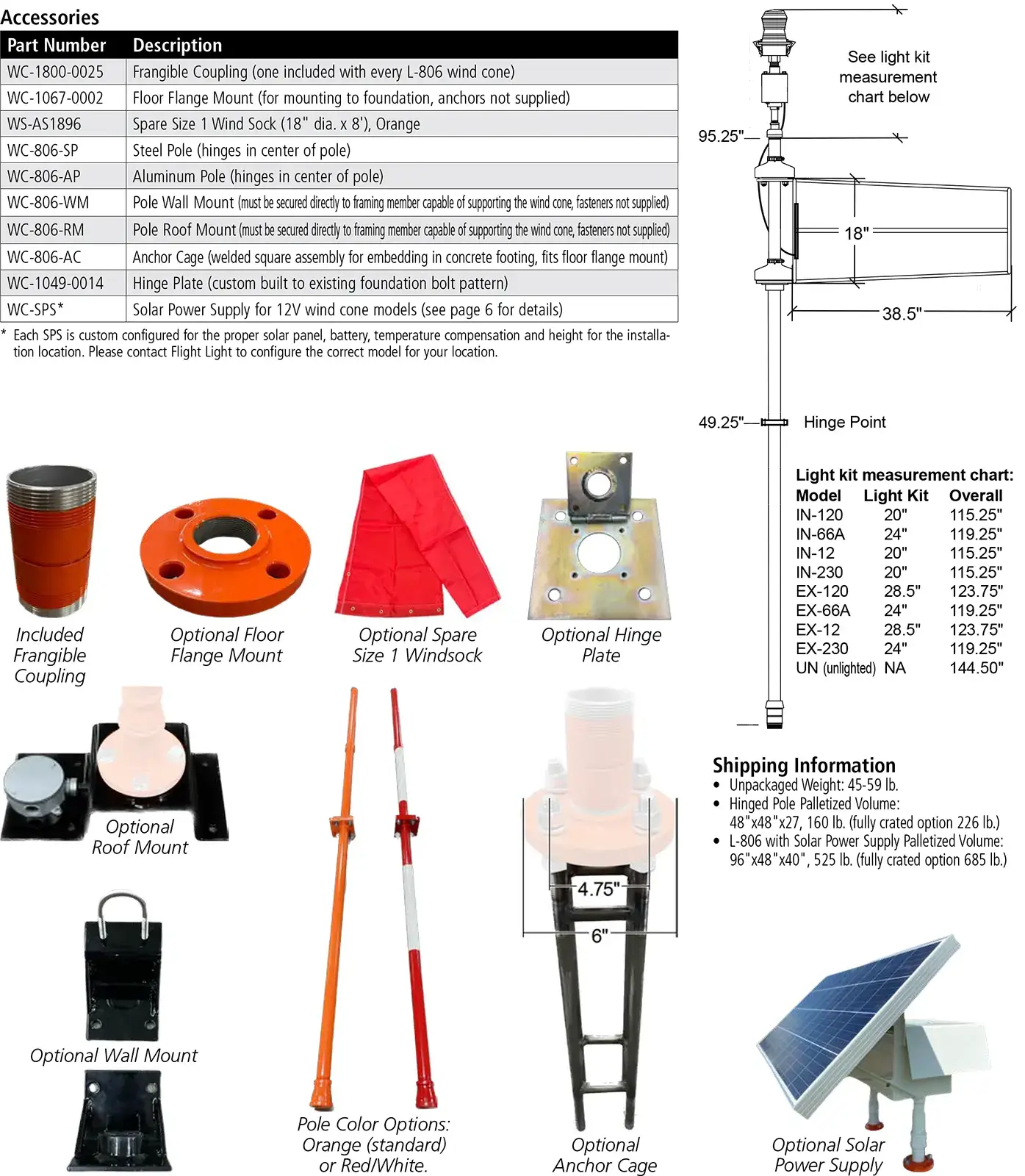

Accessories
| Part Number | Description |
|---|---|
| WCH-1800-0025 | Frangible Coupling (one included with every L-806 wind cone) |

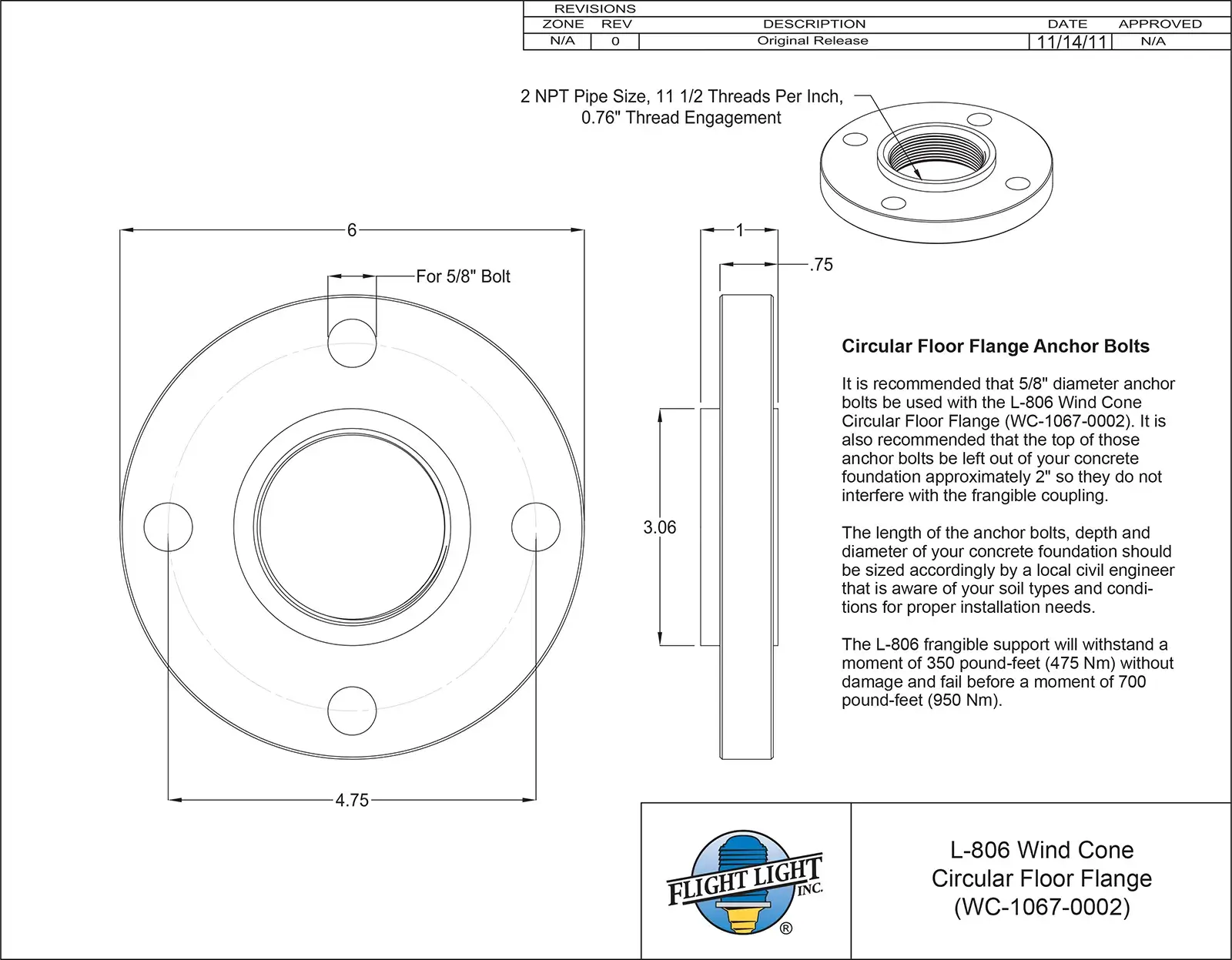

| WCH-1067-0002 | Floor Flange Mount (for mounting to foundation, anchors not supplied) |
| WS-AS1896 | Spare Size 1 Wind Sock (18″ dia. x 8′), Orange |
| WCH-806-HS | Hinged Steel Pole (hinges in center of pole) |
| WCH-806-ST | Steel Pole (non-hinged) |
| WCH-806-HA | Hinged Aluminum Pole (hinges in center of pole) |
| WCH-806-AL | Aluminum Pole (non-hinged) |
| WCH-806-WM | Pole Wall Mount (must be secured directly to framing member capable of supporting the wind cone, fasteners not supplied) |
| WCH-806-RM | Pole Roof Mount (must be secured directly to framing member capable of supporting the wind cone, fasteners not supplied) |
| WCH-806-AC | Anchor Cage (welded square assembly for embedding in concrete footing, fits floor flange mount) |

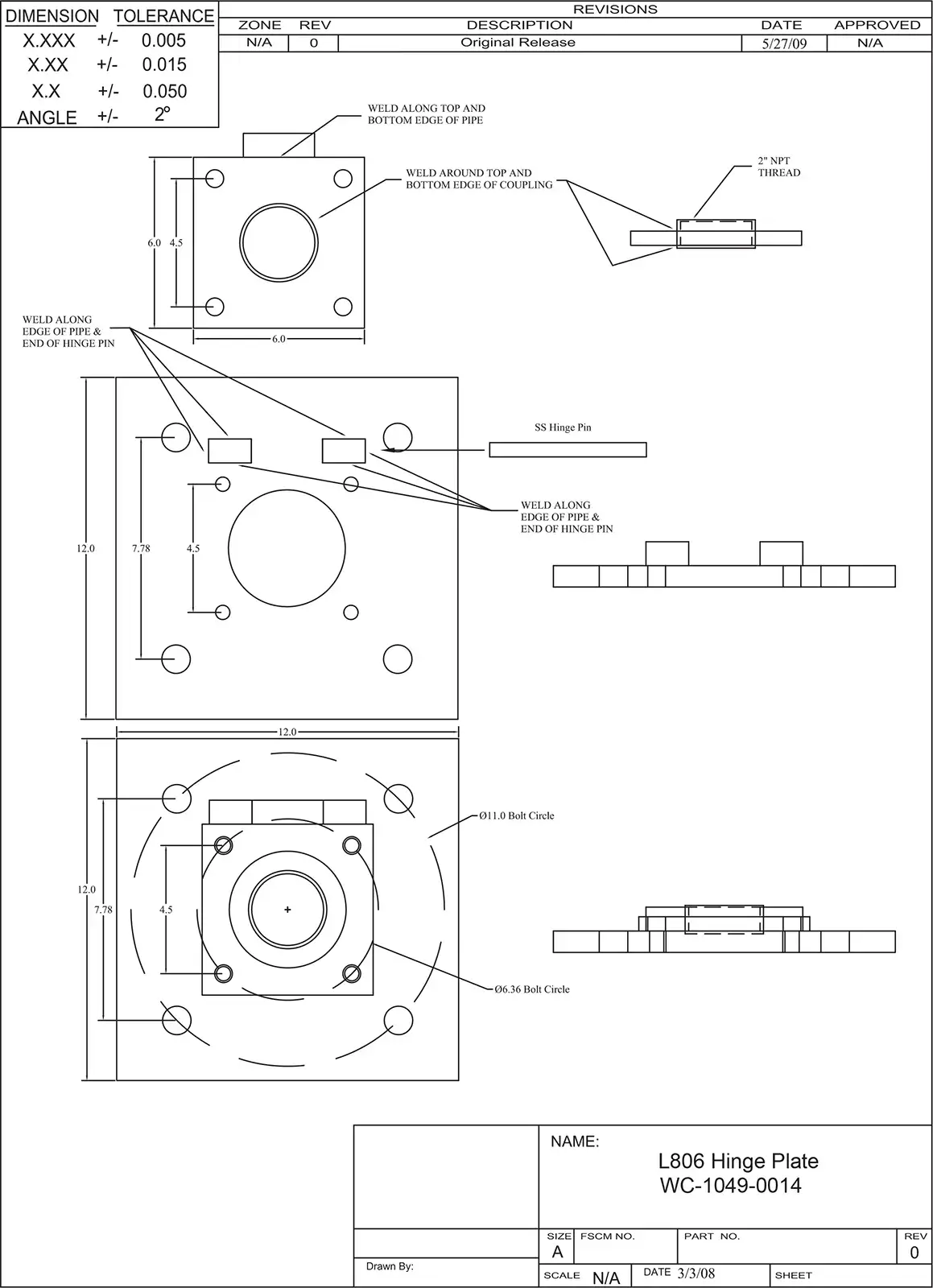

| WCH-1049-0014 | Hinge Plate (custom built to existing foundation bolt pattern) |
| WCH-SPS* | Solar Power Supply for 12V wind cone models |
| * Each SPS is custom configured for the proper solar panel, battery, temperature compensation and height for the installation location. Please contact Flight Light to configure the correct model for your location. | |
Shipping Information
• Unpackaged Weight: 45-59 lb.
• Hinged Pole Palletized Volume: 48″x48″x27, 160 lb. (fully crated option 226 lb.)
• Non-Hinged Poles Palletized Volume: 96″x48″x32″, 180 lb. (fully crated option 300 lb.)
• L-806 with Solar Power Supply Palletized Volume: 96″x48″x40″, 525 lb. (fully crated option 685 lb.)
WCH Series Wind Cone Solar Power Supply
Applications
The Solar Power Supply (SPS) is a self-contained photovoltaic power source for the WCH Series L-806 and L-807 wind cones.
Features
• Eliminates expensive underground trenching and wire installations for wind cones
• Easy installation: pre-set solar angle, pre-assembled anchor for easy mounting
• Fully sunlight powered, zero energy cost operation
• 10 day nominal battery autonomy
• Long life premium AGM solar batteries (5-10 years expectancy)
• 100 to 300 A-H AGM battery, designed for 4000 charge/discharge cycles
• 100 or 200 watt solar panel, with 12-year/90% and 25-year/80% power warranty
• Custom designed for the installation site, using 30-year worst case insolation and temperature extremes
• Insulated battery compartment to preserve battery life
• MPPT charge controller, with custom-programmed temperature compensation
• On-board indicators for battery, charging and system status
• Dual-post mount, with frangible couplings, designed to withstand ASCE Exposure C wind loads
• Temperature range: -49 to +131 °F (-45 to +55 °C)
• Marine treated option available for corrosive environments (upgrades enclosure to aluminum, stainless hardware throughout, marine treated powder coat)
• Manufactured in the USA
Installation Information
The SPS is attached to a 4-bolt anchor assembly (included), mounted in a concrete slab. Power is supplied to the wind cone by a cable in liquid-tight conduit through one of the SPS mounting legs.
Ordering Information
| Product | Description |
|---|---|
| WCH-SPS-100-2-12 | 100 Watt Panel, 2 Batteries, 12″ Legs |
| WCH-SPS-100-2-30 | 100 Watt Panel, 2 Batteries, 30″ Legs |
| WCH-SPS-200-2-12 | 200 Watt Panel, 2 Batteries, 12″ Legs |
| WCH-SPS-200-2-30 | 200 Watt Panel, 2 Batteries, 30″ Legs |
| WCH-SPS MARINE | Marine treated option for installations within 100 miles of the sea. Aluminum enclosure, marine treated powder coat, stainless steel hardware throughout. |
| NOTE: Each SPS is custom configured for the proper solar panel, battery, temperature compensation and height for the installation location. Please contact Flight Light to configure the correct model for your location. | |
Replacement Parts
| Part Number | Description |
|---|---|
| WCH-7800-0004 | Solar Panel, 100 Watt |
| WCH-7800-0005 | Solar Panel, 200 Watt |
| WCH-1300-0081 | Battery, PVX-840T |
| WCH-4500-0020 | Charge Controller |
| WCH-7800-0006 | Photocell |
| WCH-1800-0036 | Frangible Coupling |
| WCH-2300-0024 | Fuse, 10A 32V |
Shipping Information
• Unpackaged Weight: 186-268 lb.
• Shipping Weight: 266-388 lb.
• International Shipping Weight: 466-588 lb.
• Shipping Volume: 60″L x 40″W x 44″H
Can be shipped with wind cone in same crate.
