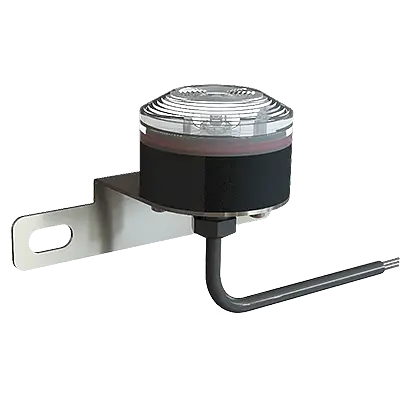

Q-Obstruction Red Light (OWS-LIOL-B) | Low Intensity 32 cd
Certificates
• ICAO Certificate
• CE Certificate
• RoHS Certificate
Applications
The Q-Obstruction Light Low Intensity 32 cd (OWS-LIOL-B) is an ICAO and CAP437 compliant obstruction light for all facilities. The obstruction light is available in the configurations 100-240 VAC and 24 VDC.

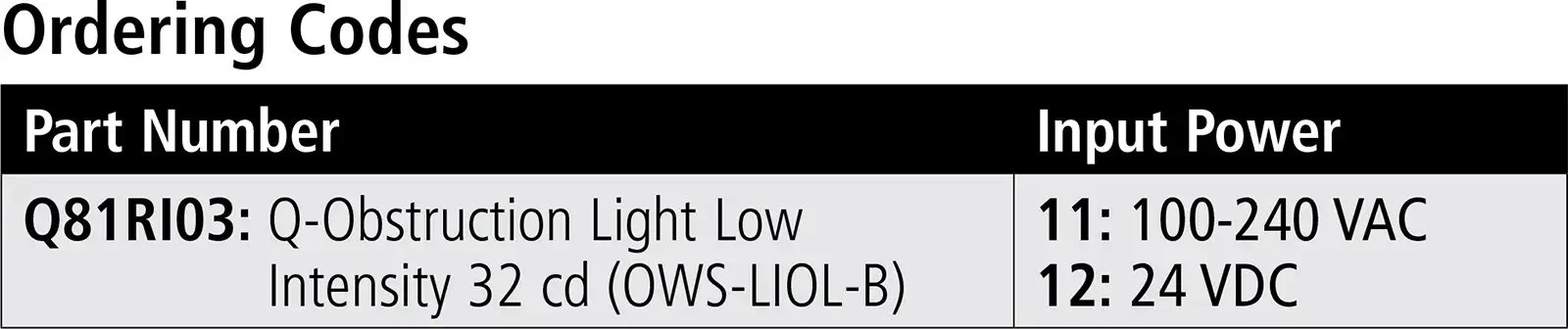

Ordering Codes
| Part Number | Input Power |
|---|---|
| Q81RI03: Q-Obstruction Light Low Intensity 32 cd (OWS-LIOL-B) | 11: 100-240 VAC 12: 24 VDC |
Electrical Characteristics
• Operating Voltage: 230 VAC or 24 VDC
• Power Consumption: 1 Watt
Physical Characteristics

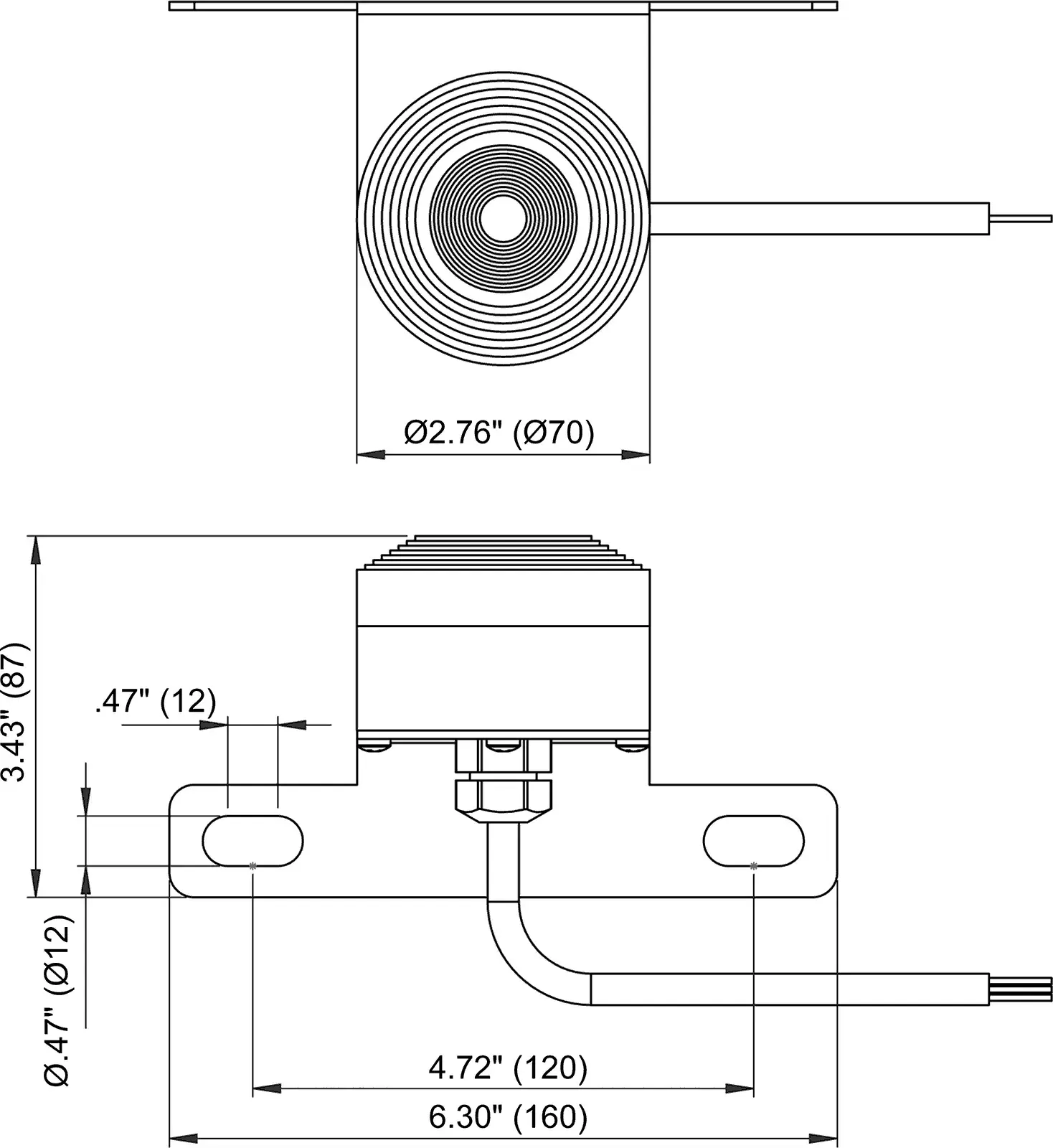

• Dimensions: 2.8″ x 2.8″ x 2.7″ (70x70x69mm) (LxWxH)
• Mounting Position: see drawing
• Mounting: 2x Ø10mm (M8)
• Weight: 1.1 lb. (0.5 kg)
• Design Degree of Protection: IP66
• Operating Temp. Range: -13°F to +140°F (-25° to +60°C)
• Supplied with pre-mounted cables for easy installation and high reliability [4.9′ (1.5 m)]
• Cable Bending Radius Static: 7x cable diameter
• Outer Cable Diameter: Ø8+/- 0.5 mm
• Horizontal Beam Pattern: 360°
• Effective Intensity: 10cd / 32cd
• Vertical Beam Pattern: 8° FWHM
System Design, Control and Monitoring
• Use as a stand-alone light, or in a multiple light system with a QAVI Control system.
Key Features
• Smallest light fixture in the industry
• Offshore product design experience
• Compact and lightweight
• Easy to install
• 100,000 hours design life
• No maintenance required over service life
• Low power consumption
• Long life power supply to match LED life
