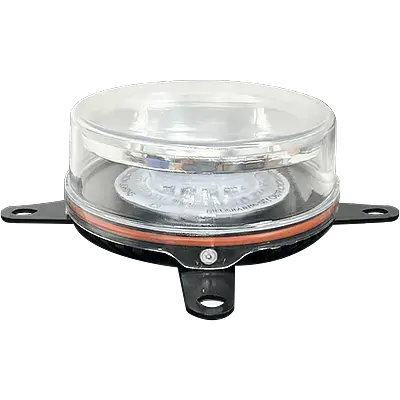

Q-Obstruction Red Light (OWS-LIOL-200) | Low Intensity 200 cd
Certificates
• ICAO Certificate
• CE Certificate
• RoHS Certificate
Applications
The Q-Obstruction Light Low Intensity 200 cd (OWS-LIOL-200) is an ICAO, CAP437 and CAP168 compliant obstruction light for the Safe Area. The obstruction light is available in the configurations 100-240 VAC, 24 VDC, or 12 VDC.

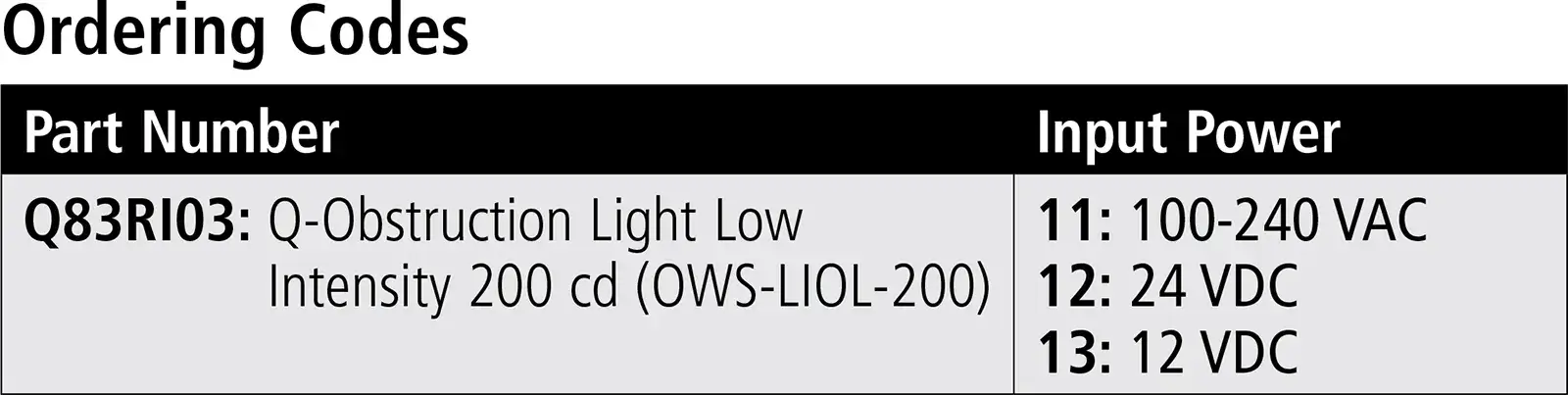

Ordering Codes
| Part Number | Input Power |
|---|---|
| Q83RI03: Q-Obstruction Light Low Intensity 200 cd (OWS-LIOL-200) | 11: 100-240 VAC 12: 24 VDC 13: 12 VDC |
Electrical Characteristics
• Operating Voltage: 100-240 VAC / 24 VDC / 12 VDC
• Power Consumption: 2 Watt
• Overvoltage Protection: Class III according to IEC61643-1 [OPTIONAL]
Physical Characteristics

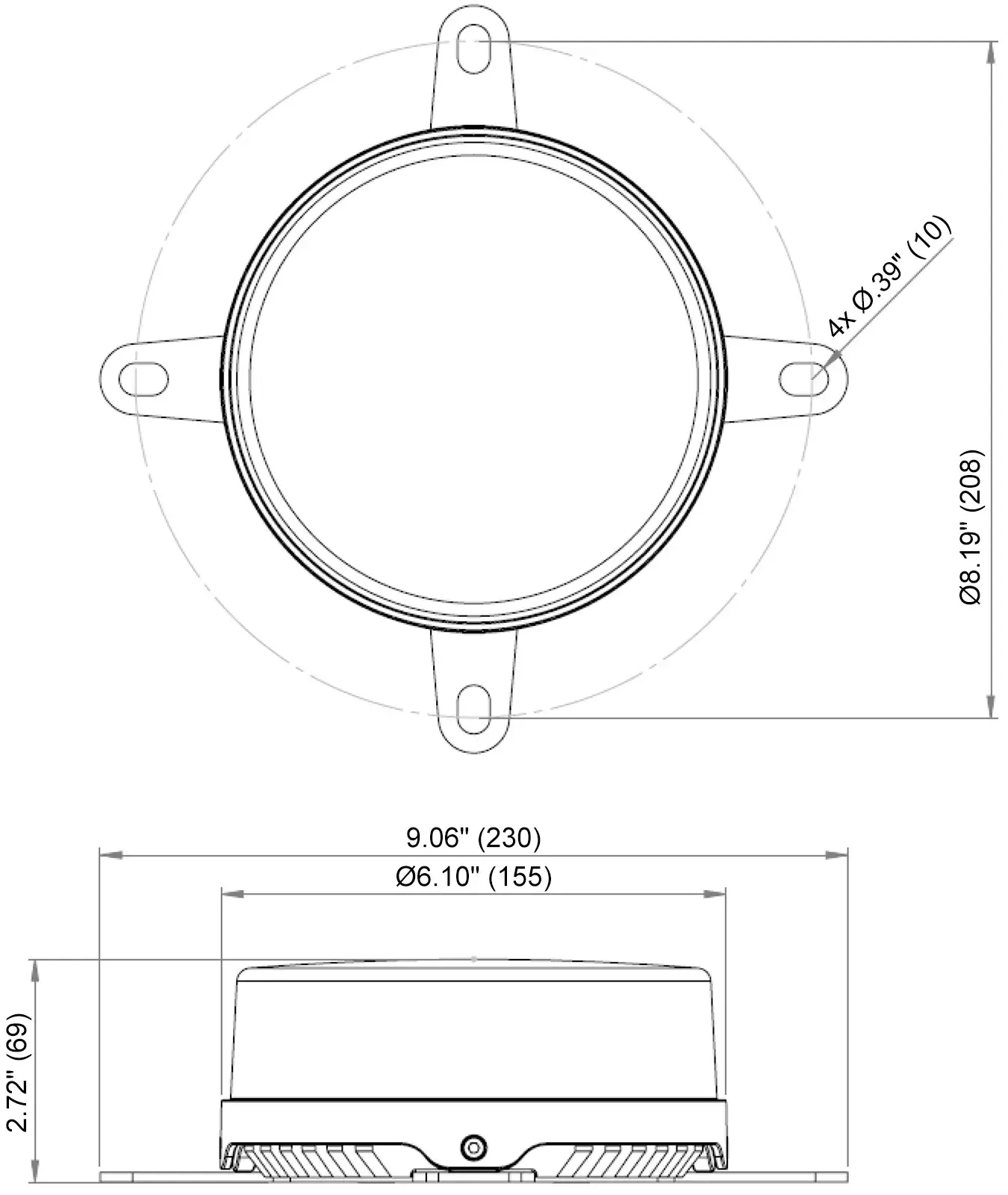

• Dimensions: 9.1″ x 9.1″ x 2.7″ (230x230x69mm) (LxWxH)
• Mounting Position: see drawing
• Mounting: 4x Ø10mm (M8)
• Weight: 2.43 lb. (1.1 kg)
• Design Degree of Protection: IP66
• Operating Temp. Range: -13°F to +140°F (-25° to +60°C)
• Supplied with pre-mounted cables for easy installation and high reliability [4.9′ (1.5 m)]
• Cable Bending Radius Static: 7x cable diameter
• Outer Cable Diameter: Ø8+/- 0.5 mm
• Level indicators for correct mounting
