Q-Obstruction Light Low Intensity
Certificates
• ICAO Certificate
• CE Certificate
• RoHS Certificate
Applications
The Q-Obstruction Light Low Intensity is an ICAO and CAP437 compliant obstruction light for all facilities. The light operates on 24 VDC or 100-240 VAC.

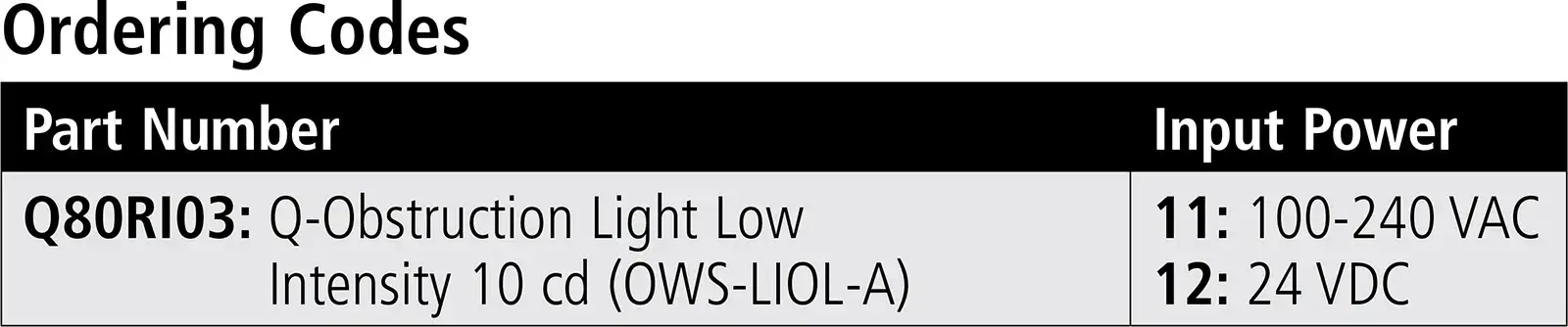

Ordering Codes
| Part Number | Input Power |
|---|---|
| Q80RI03: Q-Obstruction Light Low Intensity | 11: 100-240 VAC 12: 24 VDC |
Technical Specifications
• Application: Obstruction lighting
• Classification: Safe Area
• Light Source: LED, steady burning
• Light Color: Red, 630nm
• Light Intensity: 10 cd
• Vertical Beam Profile: as per ICAO
• Color Chromaticity: as per ICAO
• Enclosure: POM, polycarbonate lens
• Mounting: Rigid, 4 x M8
• Input Voltage: 1) 100-240 VAC 50-60 Hz, 2) 24 VDC
• In Compliance With: ICAO Low-intensity, Type A & Type B
• Cable Glands Included: 1 x M16 x 1.5mm
• Cable Outer Dimension: 5 – 10mm
• Consumption: 1 Watt
• Life Expectancy: 100,000+ hours
• Warranty: 2 Years
• IP Index: IP 66
• Weight: .66 lb. (0.3 kg)
