LED Taxiway Edge Light | FAA L-861T
This product is available in our webstore – Shop Now
Compliance and Applications
Certified to FAA AC 150/5345-46 (Current Edition)
FAA Engineering Brief No. 67
Our ETL Certified L-861T LED Taxiway Edge Lights are used to mark the outlines of taxiways at general aviation and medium-sized airports. Each L-861 is constructed from a die cast aluminum body, powder coated in aviation yellow. The L-861s feature long-life LEDs that reduce power consumption, increase reliability and reduce operating costs. A rugged cord is included with a rubberized L-823 style connector to connect to the secondary of a 6.6A isolation transformer. Each L-861 includes a 1.5″ (standard) or 2.0″ frangible coupling to attach the fixture to a L-867 style base plate or mounting stake. Standard mounting heights are 14, 24 and 30 inches.

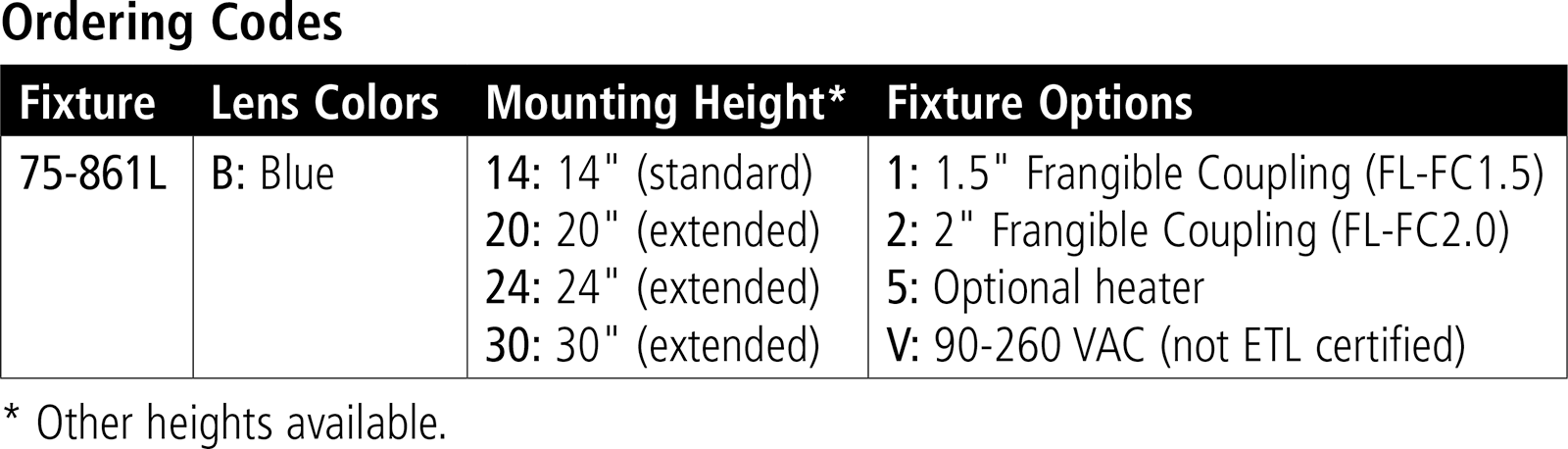

Ordering Codes
| Fixture | Lens Colors | Mounting Height[1] | Fixture Options |
|---|---|---|---|
| 75-861L | B: Blue | 14: 14″ (standard) 20: 20″ (extended) 24: 24″ (extended) 30: 30″ (extended) |
1: 1.5″ Frangible Coupling (FL-FC1.5) 2: 2″ Frangible Coupling (FL-FC2.0) 5: Optional heater[2] V: 90-260 VAC (not ETL certified) |
| [1] Other heights available. [2] Heater only available with 6.6A fixtures. | |||
Features
• Applicable for L-861T (L) requirements.
• Colored glass lens for easy daytime recognition.
• Double sealing system creates watertight head assembly.
• Rugged solid state components.
• Complies with intensity requirements on 3 or 5 step regulators.
• Durable powder coat finish lasts longer.
• Reduces power consumption.
• Long-life LEDs.
• Cord set sealed to prevent insect entry.
• Threaded 1.5″ frangible coupling or optional 2″ thread matches existing baseplates/stakes.
