L-862(L) High Intensity Runway/Threshold Light LED
Compliance
• FAA: AC 150/5345-46 and Engineering Brief No. 67, ETL Certified
• ICAO: Annex 14, Volume 1
• Canada: TP 312
Applications
Runway Edge, Threshold, Displaced Threshold, Threshold/End, Displaced Threshold Precision IFR Runways
Features
• Long life LEDs for over 56,000 hours of service.
• Light clarity ensured for years with glass lens.
• Dimmable to FAA intensity curve from 2.8 amp to 6.6 amps.
• Fixtures without arctic kits use 30/45W isolation transformers, fixtures with arctic kits use 65W isolation transformers.
• Plug and Know circuit design. Dynamic controller senses the attached light engines, allowing for greater service flexibility.
• Daytime recognition provided on lens retainers.
• Leveling surface and sighting cross on cap eliminates the need for an aiming device.
• Fixture surface area designed to meet LED thermal requirements.
Ordering Codes

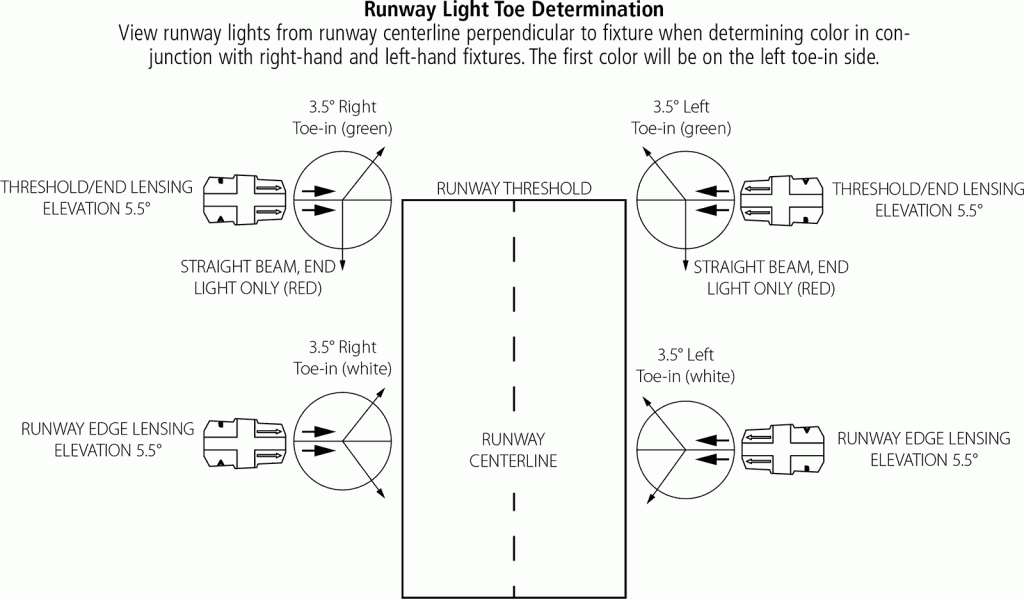

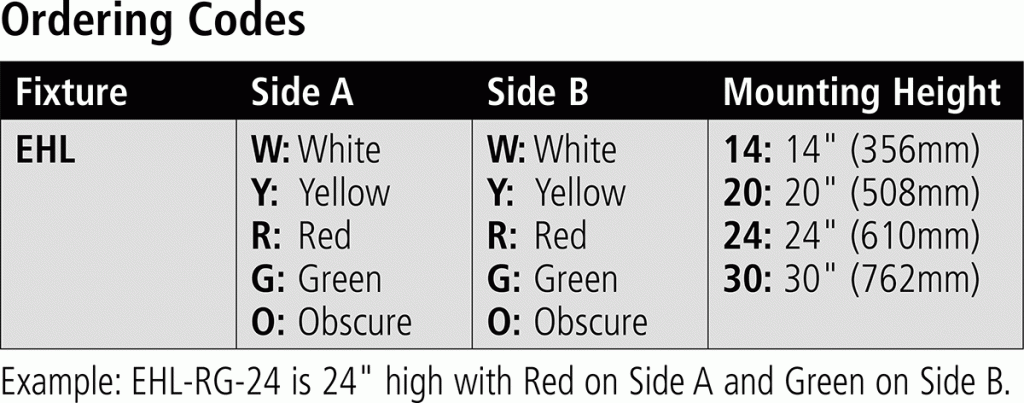

| Fixture | Side A | Side B | Mounting Height | Options |
|---|---|---|---|---|
| EHL | W: White Y: Yellow R: Red G: Green (FAA) I: Green (ICAO / TP312) O: Obscure |
W: White Y: Yellow R: Red G: Green (FAA) I: Green (ICAO / TP312) O: Obscure |
14: 14″ (356mm) 20: 20″ (508mm) 24: 24″ (610mm) 30: 30″ (762mm) |
0: No Arctic Kit 5: Arctic Kit |
| Example: EHL-RG-24 is 24″ high with Red on Side A and Green on Side B. Fixture comes with special coupling, P/N 75-62-1060: 1.5″ Frangible Metal Hex Coupling (with 6 threaded bolts) |
||||
Specifications
• Height, head assembly: 6.8″ (173mm)
• Height, with slip fitter: 8.9″ (226mm)
• Width: 5.5″ (140mm)
• Length: 5.2″ (132mm)
• Weight: 7.2 lb. (3.3kg)
The L-862 fixtures ship in a single box (9-1/8″ x 5-3/4″ x 7″) or in a case of 18 (18″ x 17″ x 16″).
