L-861SE(L) LED Light
Downloads
Compliance
• ETL Certified L-861SE(L): FAA AC 150/5345-46 (Current Edition) and Engineering Brief No. 67
Applications
Runway Threshold/End, Non-Precision IFR Runways
Features
• LEDs with expected life in excess of 56,000 hours
• Light clarity ensured for years with glass lens
• Dimmable to FAA intensity curve from 2.8 amp to 6.6 amps
• Bidirectional fixtures use 65W, unidirectional fixtures use 45W
• Plug and Know circuit design: Dynamic controller senses the attached light engines, allowing for greater service flexibility
• Daytime recognition provided on lens retainers
• Leveling surface and sighting cross on cap eliminates the need for an aiming device
• Fixture surface area designed to meet LED thermal requirements
Specifications
• Height, head assembly: 6.8″ (173mm)
• Height, with slip fitter: 8.9″ (226mm)
• Width: 5.5″ (140mm)
• Length: 5.2″ (132mm)
• Weight: 7.2 lb. (3.3kg)
The fixtures ship in a single box (9-1/8″ x 7″ x 5-3/4″) or in a case of 9 (17″ x 16-1/2″ x 10″).

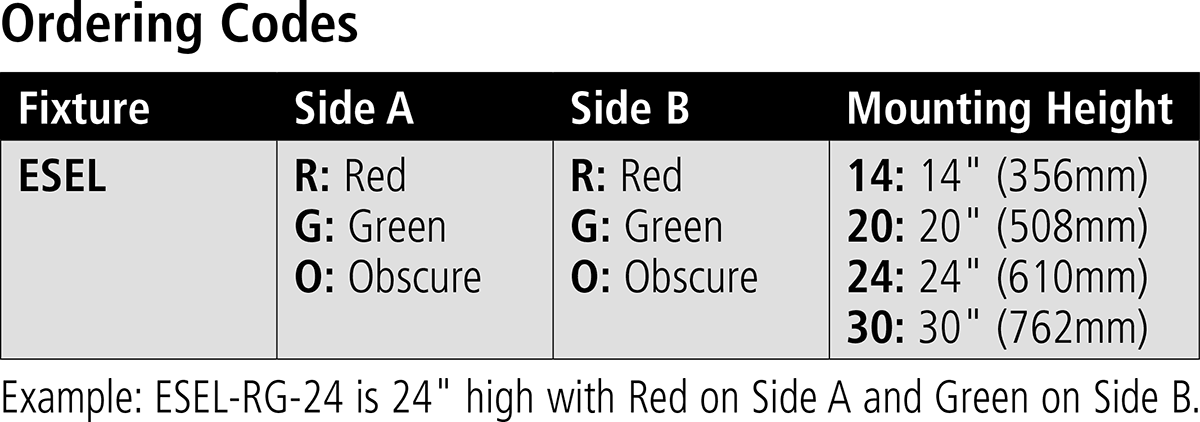

Ordering Codes
| Fixture | Side A | Side B | Mounting Height |
|---|---|---|---|
| ESEL | R: Red G: Green O: Obscure |
R: Red G: Green O: Obscure |
14: 14″ (356mm) 20: 20″ (508mm) 24: 24″ (610mm) 30: 30″ (762mm) |
| Example: ESEL-RG-24 is 24″ high with Red on Side A and Green on Side B. Fixture comes with special coupling, P/N 75-62-1060: 1.5″ Frangible Metal Hex Coupling (with 6 threaded bolts) |
|||
