L-849(L) Runway End Identifier Light | LED REIL
Compliance and Applications
• ETL Certified L-849(L): FAA AC 150/5345-51B; EB67
• Canada: TP 312 5th Edition
Our FAA-compliant LED REIL system uses synchronized flashing lights to provide rapid and positive visual identification of the runway threshold for pilots during approach, particularly in low-visibility or complex lighting environments.
Features
• Low annual energy costs
• Long-life LED for years of service
• High, medium and low intensity
• Primary/Secondary system operation
• Field programmable sequence timing
• Meets photometric beam requirements for MALSR, SSALR, and ALSF-I/II
• No power adapter required
• True RMS current sensing
• Uni-directional or Omni-directional
• 50 or 60 Hz
• Flash monitoring
• Elapsed time meter
• Use two (2) L830-4 100W Isolation Transformers

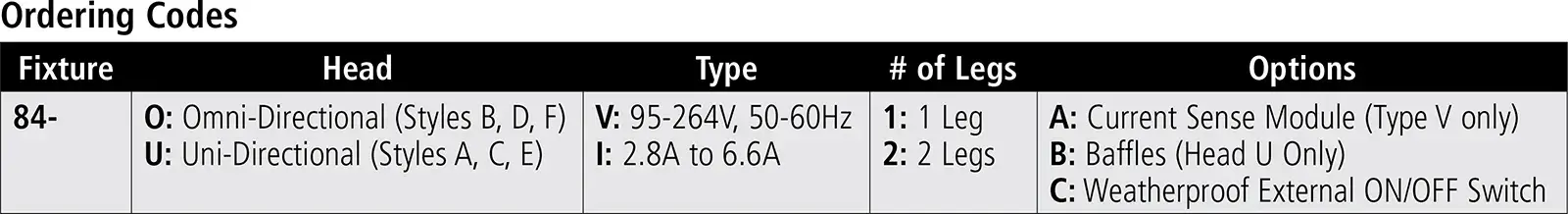

Ordering Codes
| Fixture | Head | Type | # of Legs | Options |
|---|---|---|---|---|
| 84- | O: Omni-Directional (Styles B, D, F) U: Uni-Directional (Styles A, C, E) |
V: 95-264V, 50-60Hz I: 2.8A to 6.6A |
1: 1 Leg 2: 2 Legs |
A: Current Sense Module (Type V only) B: Baffles (Head U Only) C: Weatherproof External ON/OFF Switch |
