L-806 & L-807 Wind Cone Light Kits

Made in USA Buy American Act

L-806 & L-807 Wind Cone Light Kits

Applications

The L-806 and L-807 Wind Cone Light Kits illuminate the surface of the wind cone sock. Internal lighting gives superior nighttime visibility over conventional external lighting.

Features

• Available for Size 1 (18") and Size 2 (36") baskets.
• Available in 120 VAC, 12 VDC, or 6.6 amp.
• Designed to fit all major manufacturer’s wind cones.
• Simple installation: the light assembly attaches to the basket with 2 clamps, and the electrical feed assembly attaches to the top of the pole.
• The LED models feature:
- 50,000 to 100,000 hour lamp life, virtually maintenance-free.
- Independent lamp circuits, for improved reliability.
- 6 to 60 VA power consumption, only 5-20% of a typical non-LED external light.
- Long-life LED obstruction light.
• The internally-lighted halogen models have two 100 watt lamps on Size 1, four 100 watt lamps on Size 2, 2,000 hour typical lamp life.
• Includes a single L-810 obstruction light.
• Also available in externally-lighted models.
• Manufactured in the USA.

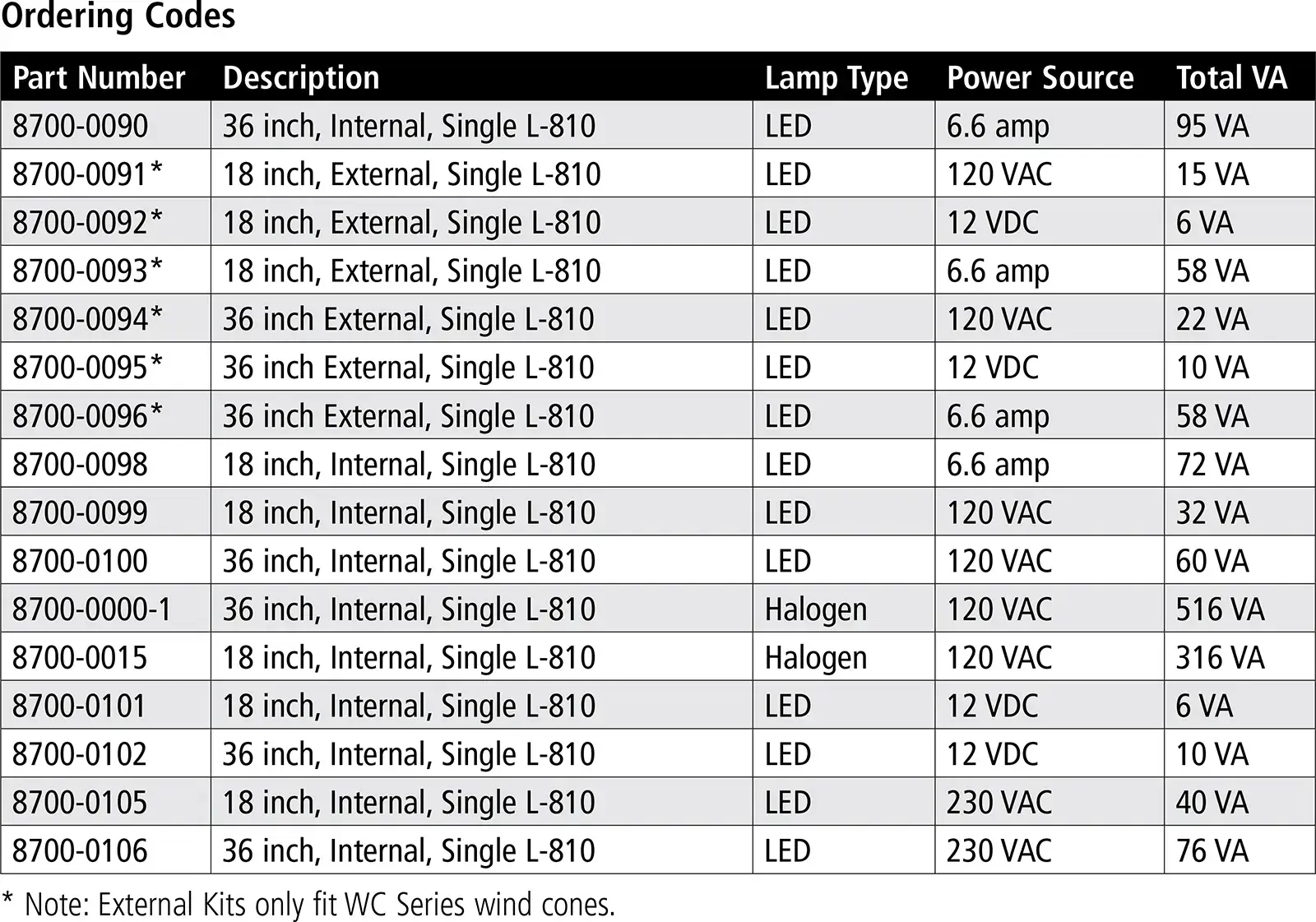

Ordering Codes

Part Number Description Lamp Type Power Source Total VA
8700-0090 36 inch, Internal, Single L-810 LED 6.6 amp 95 VA
8700-0091* 18 inch, External, Single L-810 LED 120 VAC 15 VA
8700-0092* 18 inch, External, Single L-810 LED 12 VDC 6 VA
8700-0093* 18 inch, External, Single L-810 LED 6.6 amp 58 VA
8700-0094* 36 inch External, Single L-810 LED 120 VAC 22 VA
8700-0095* 36 inch External, Single L-810 LED 12 VDC 10 VA
8700-0096* 36 inch External, Single L-810 LED 6.6 amp 58 VA
8700-0098 18 inch, Internal, Single L-810 LED 6.6 amp 72 VA
8700-0099 18 inch, Internal, Single L-810 LED 120 VAC 32 VA
8700-0100 36 inch, Internal, Single L-810 LED 120 VAC 60 VA
8700-0000-1 36 inch, Internal, Single L-810 Halogen 120 VAC 516 VA
8700-0015 18 inch, Internal, Single L-810 Halogen 120 VAC 316 VA
8700-0025* 18 or 36 inch, External, Single L-810 Halogen 120 VAC 191 VA
8700-0101 18 inch, Internal, Single L-810 LED 12 VDC 6 VA
8700-0102 36 inch, Internal, Single L-810 LED 12 VDC 10 VA
8700-0105 18 inch, Internal, Single L-810 LED 230 VAC 40 VA
8700-0106 36 inch, Internal, Single L-810 LED 230 VAC 76 VA
* Note: External Kits only fit WCH Series wind cones.
