I-Lux LED Taxiway and Runway Signs | FAA L-858
Downloads
Compliance and Applications
FAA AC 15/5345-44 (Current Edition)
FAA Engineering Brief No. 67
Our I-Lux signs solidly and seamlessly integrate off-the-shelf parts and custom fabrication for strength and flexibility while minimizing operating costs.
All FAA Sizes, FAA Types, and FAA Styles are now available with long-lasting, energy-efficient LED lighting. Our LED L-858 signs consume up to 80% less power than signs using traditional lamps and up to 50% less power than other LED signs. With crisp, clean LED light and minimal bloom or ground splash, they are visually acquired more quickly and are much easier to read.
Features
• Solid, seamless construction for strength and reliable performance.
• Long-lasting, energy-efficient LEDs virtually eliminate ongoing maintenance.
• Lowest VA loads: Most efficient ETL Certified LED L-858 signs available.
• LEDs use 80% less power than traditional lamps.
• Crisp, clean light with minimal bloom or ground splash makes them easier to acquire and read.
• Quick, simple and less expensive to install.
• Bright, clear panels are highly impact resistant.

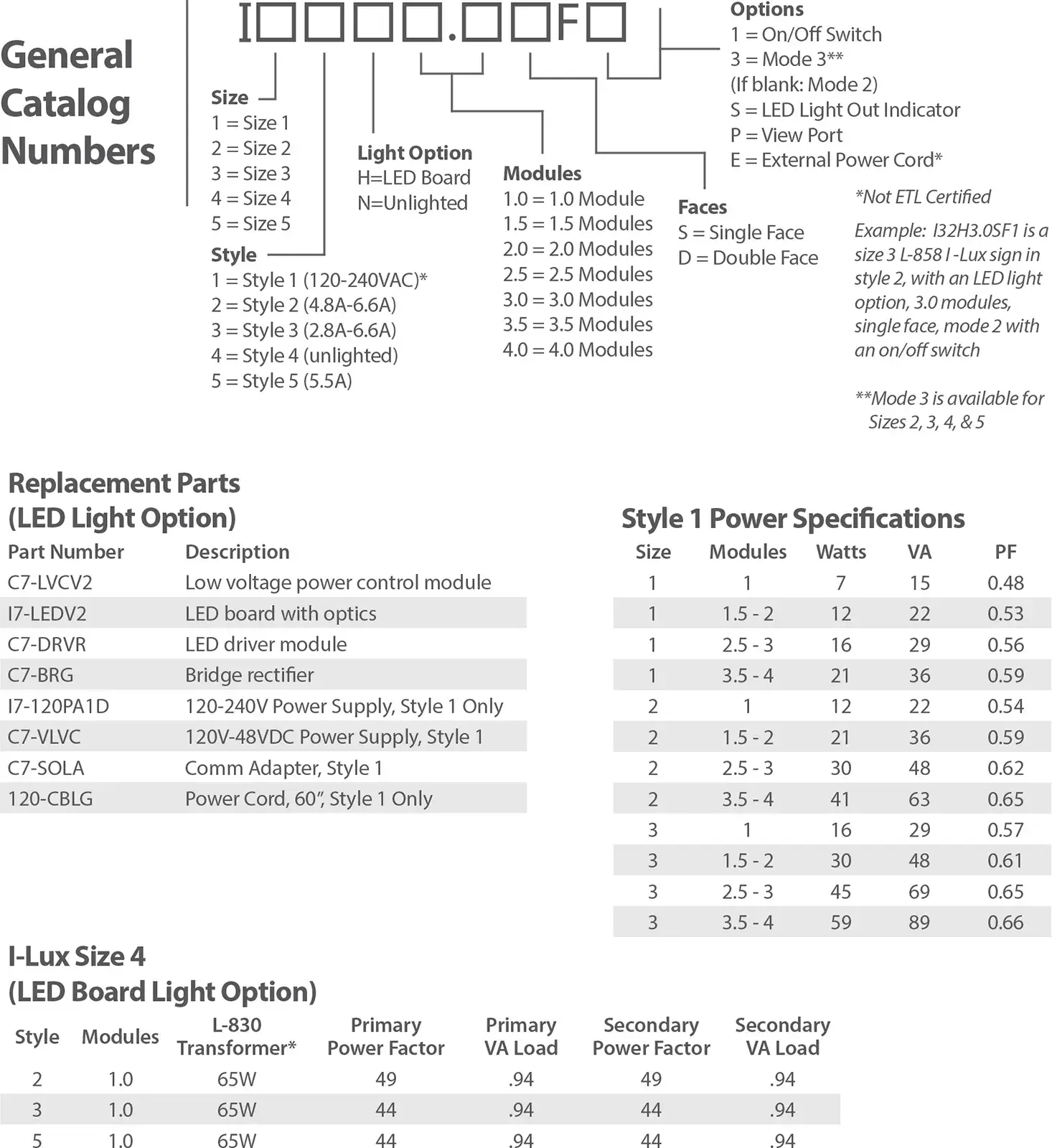

Ordering Codes
| Model | Sign Size | Power Style | Lamp Type | Modules (length in inches) | Sign Faces | Optional Items | Mode | ||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I: ILUX | 1: Size 1 2: Size 2 3: Size 3 5: Size 5 |
2: Style 2 (3 step 4.8A to 6.6A) 3: Style 3 (5 step 2.8A to 6.6A) 5: Style 5 (1 step 5.5A) |
H: LED board |
|
SF: Single Face DF: Double Face |

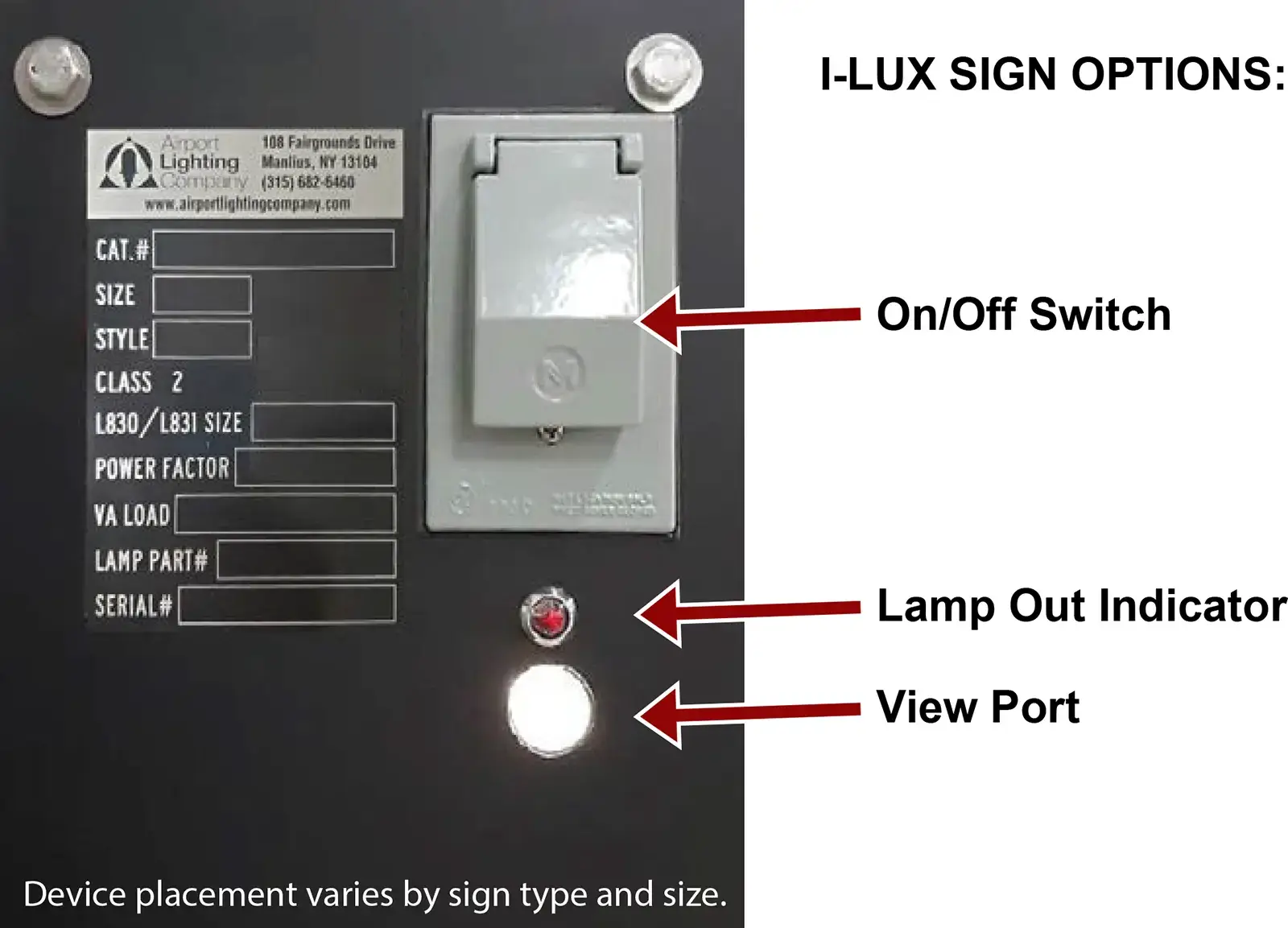

1: On/Off Switch (with cover) P: View Port S: LED Lamp Out Indicator E: External Power Cord (Not ETL Certified) MX: FAA size panel & frame, ICAO specified legend, illumination & retroreflective (Not ETL Certified) |
3: Mode 3 (if blank = Mode 2) | ||||||||||||||||||||||||||||||||||||||||
| All signs are Class 2, Mode 2. | |||||||||||||||||||||||||||||||||||||||||||||||
Construction
The platform for the I-Lux is a cabinet machined from solid, heavy gauge aluminum extrusion. Monolithic tops and bottoms are impervious to blowing rains, dirt, and snow because they are free of the gaps found in signs of modular construction. The I-Lux is inherently stronger than modular signs because it doesn’t rely on the strength of the hardware used to piece modular signs together.

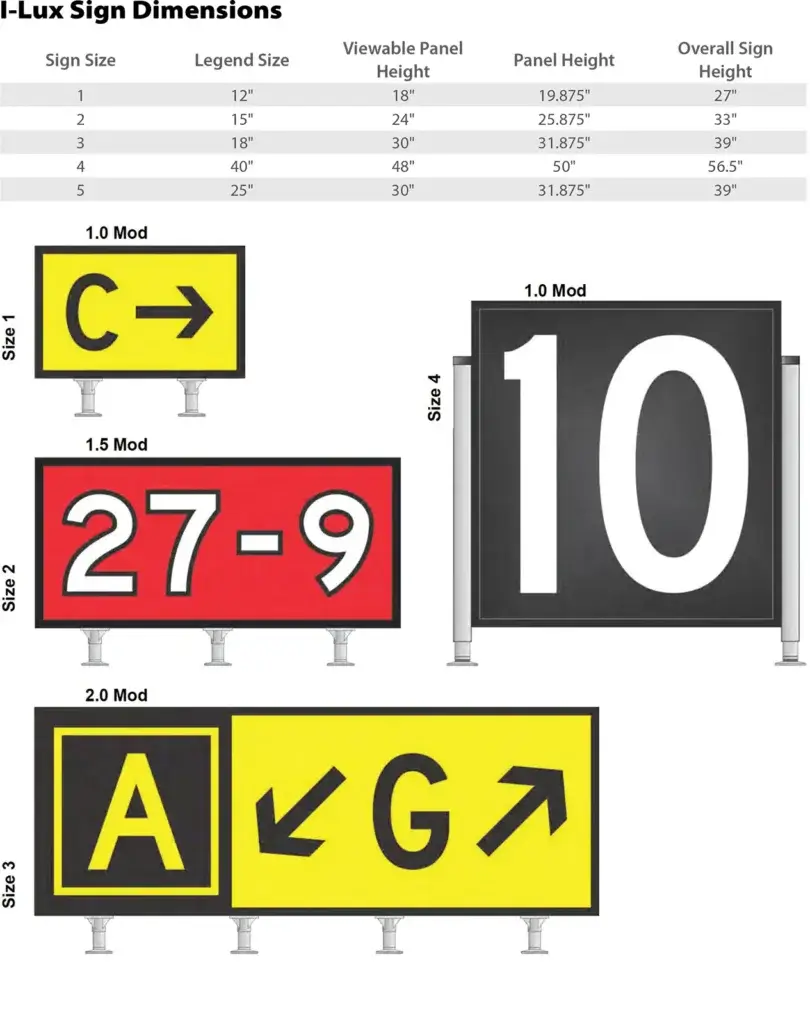

The I-Lux L-858 is the only airfield sign available in half module sizing. This keeps it as short as possible, though well within FAA legend specifications. Installation is quick and economical, with a smaller excavation, less concrete and fewer legs to bolt to the pad.
The I-Lux is a smaller obstruction in the field than modular signs, presenting less inertial load on an aircraft should a collision occur.
The seamless panels of the I-Lux display messages without distortion. They are free of the gaps and joints that weaken modular signs and allow penetration by wind, rain, dirt and snow. Bright and clear, I-Lux panels are up to 30 times more impact resistant than other brands.
Installations of our LED L-858 virtually eliminate ongoing maintenance. The LED light engine provides remarkable reliability, eliminating the constant re-lamping required by traditional signs. You’ll spend less time driving around the airfield, reducing opportunities for incursions, and gain valuable time for more important airfield maintenance tasks.
Tried and true, the I-Lux is the solid and sensible choice for hassle-free longevity.
