HBM 400PS Airport Rotating Beacon | L-802A
This product is available in our webstore – Shop Now
Compliance and Applications
• FAA: L-802A A/C150/5345-12 (Current Edition)
• ICAO: Annex 14, para 5.3.3
L-802A Rotating Beacons are designed primarily for night operation as identification and location markers for airports.
Features
• Patented belt-drive system eliminates the lubrication maintenance required by conventional gear-drive beacons (U.S. Pat. 5,339,224)
• Patented liquid-filled lamp connector, eliminating the slip rings and brushes found on conventional beacons (U.S. Pat. 5,816,678)
• Two 40,000 lumen, 400 watt pulse-start metal-halide lamps
• Pulse-start lamps are fully bright in 3-5 minutes
• Typical lamp life 2-4 years
• One clear lens, one aviation green lens
• No maintenance except lamp replacement
• All moving parts are permanently lubricated
• Thermally-protected motor eliminates burnouts
• Lamps preset 5° above horizontal, adjustable
• 12 RPM rotation, 24 flashes/minute
• Weatherproof steel cabinet, powder coated international orange
• Optional stainless steel cabinet and bearings for highly corrosive environments
• Class I (No Heater) normal operating temperature range: 0°F to +131°F (-18°C to +55°C)
• Class 2 (With Heater) normal operating temperature range: -67°F to +131°F (-55°C to +55°C)
• Tested to wind velocities of 100 mph
• Optional tell-tale relay to monitor lamps and trigger a dry contact upon lamp outage
• Mountable on a Tipdown Pole
• Power Consumption: 965W Class I, 1365W Class II
• Manufactured in the USA

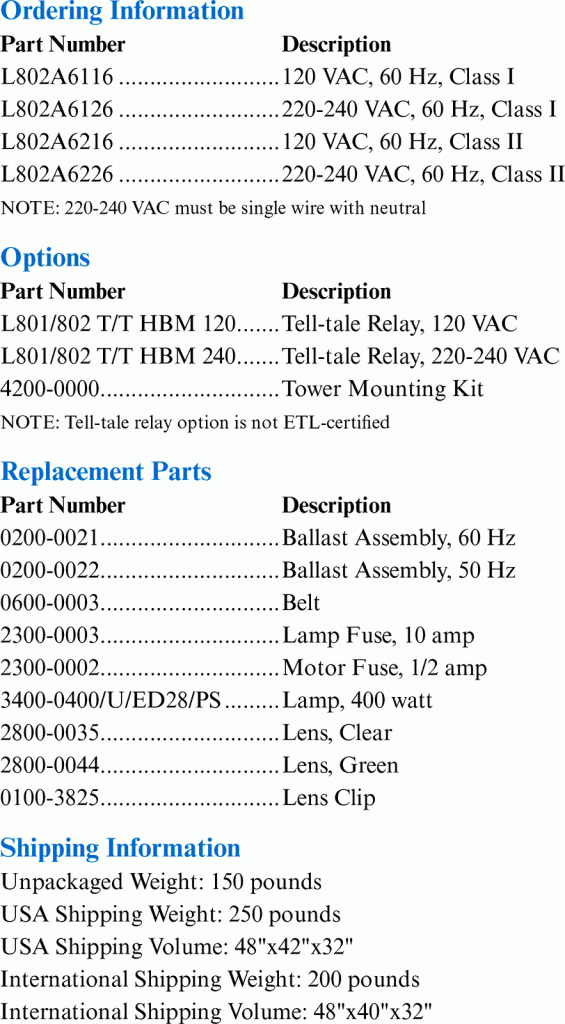

Ordering Information
| Part Number | Description |
|---|---|
| L802A6116 | 120 VAC, 60hz, Class I |
| L802A6126* | 220-240 VAC, 60 Hz, Class I |
| L802A6216 | 120 VAC, 60hz, Class II |
| L802A6226* | 220-240 VAC, 60 Hz, Class II |
| * 220-240 VAC models are for overseas applications, (220-240 volts LINE TO NEUTRAL) | |
Options
| Part Number | Description |
|---|---|
| L801/802 T/T HBM 120 | Tell-Tale Relay, 120 VAC |
| L801/802 T/T HBM 240 | Tell-Tale Relay, 240 VAC 60Hz |
| L801 HBM SS | For corrosive environment installations, installations within 100 miles of seawater: stainless steel cabinet, bearings, legs and hardware throughout. |
| 4200-0000A | Tower Mounting Kit: Creates a platform from 36″ beacon to all current model beacons |
| 4200-0001A | Tower Mounting Kit, Stainless Steel |
Replacement Parts
| Part Number | Description |
|---|---|
| 0200-0021 | Ballast Assembly, 60 Hz |
| 0600-0003 | Belt |
| 2300-0003 | Lamp Fuse, 10 amp |
| 2300-0002 | Motor Fuse, 1/2 amp |
| 3400-0400/u/ed28/ps | Lamp, 400 watt |
| 2800-0035 | Lens, Clear |
| 2800-0044 | Lens, Green |
| 0100-3825 | Lens Clip |
Shipping Information
• Unpackaged Weight: 150 lb. (68 kg)
• Shipping Weight: 220 lb. (100 kg)
• Shipping Volume: 48″ x 40″ x 33″ (122 x 102 x 84 cm)
