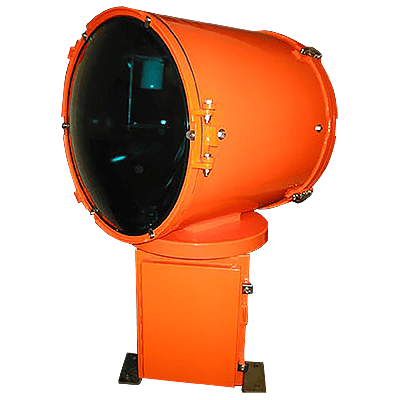

HBM 320 Military Airport Rotating Beacon | L-802M

This product is available in our webstore – Shop Now

Made in the USA flag

Compliance and Applications

• FAA: L-802M A/C 150/5345-12 (Current Edition)
• ETL Certified

L-802M Rotating Beacons are designed for operation as identification and location markers for military airports. With two 320-watt metal-halide lamps, the dual-light beacon (dual-beam clear and aviation green lenses) features a patented design that makes it maintenance free, except for lamp replacement.

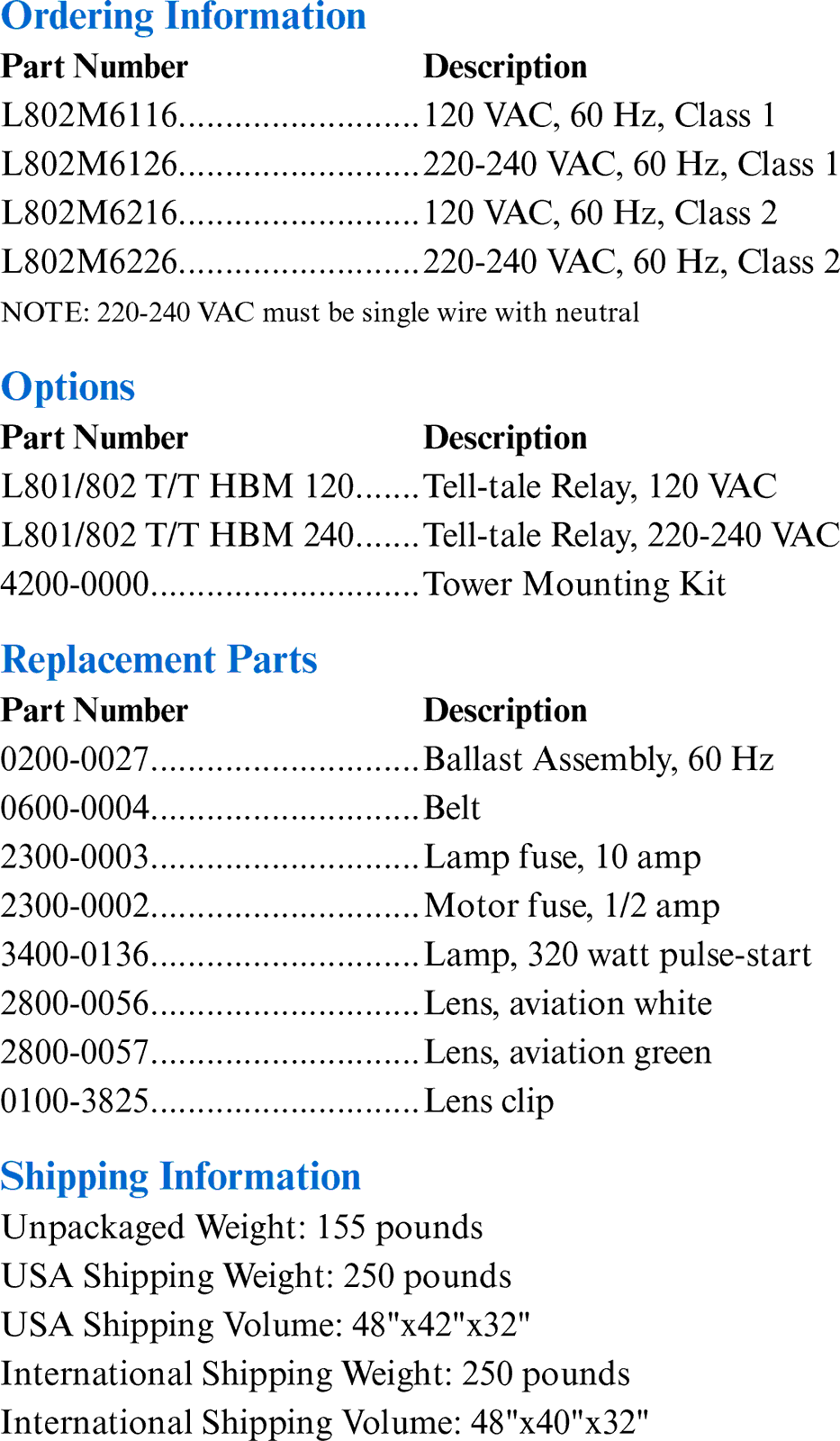

Ordering Codes

Part Number Description
L802M6116 120v, 60hz, Class 1 (no heater)[1]
L802M6125 220-240v, 50hz, Class 1 (no heater)[2]
L802M6126 220-240v, 60hz, Class 1 (no heater)[2]
L802M6216 120v, 60hz, Class 2 (with heater)[1]
L802M6225 220-240v, 50hz, Class 2 (with heater)[2]
L802M6226 220-240v, 60hz, Class 2 (with heater)[2]
[1] FAA Approved. [2] Not FAA Approved. 220-240v models are for overseas applications, (220-240 volts LINE TO NEUTRAL)

Features

• FAA Certified L-802M A/C 150/5345-12 (Current Edition)
• Patented belt-drive system eliminates the lubrication maintenance required by conventional gear-drive beacons (U.S. Pat. 5,339,224)
• Patented liquid-filled lamp connector, eliminating the slip rings and brushes found on conventional beacons (U.S. Pat. 5,816,678)
• Two 34,000 lumen, 320 watt pulse-start metal-halide lamps
• Pulse-start lamps are fully bright in 3-5 minutes
• Typical lamp life 3-5 years
• One white dual-beam lens, one aviation green lens
• No maintenance except lamp replacement
• All moving parts are permanently lubricated
• Thermally-protected motor eliminates burnouts
• Lamps preset 5° above horizontal, adjustable 2-10°
• 6 RPM rotation, 18 flashes/minute
• Weatherproof steel cabinet, powder coated international orange
• Optional stainless steel cabinet and bearings for highly corrosive environments
• Class 1 (No Heater) normal operating temperature range: 0°F to +131°F (-18°C to +55°C)
• Class 2 (With Heater) normal operating temperature range: -67°F to +131°F (-55°C to +55°C)
• Heater thermostatically controlled to engage at 0°F
• Certified to wind velocities of 100 mph
• Can operate with photocell and/or tell-tale relay

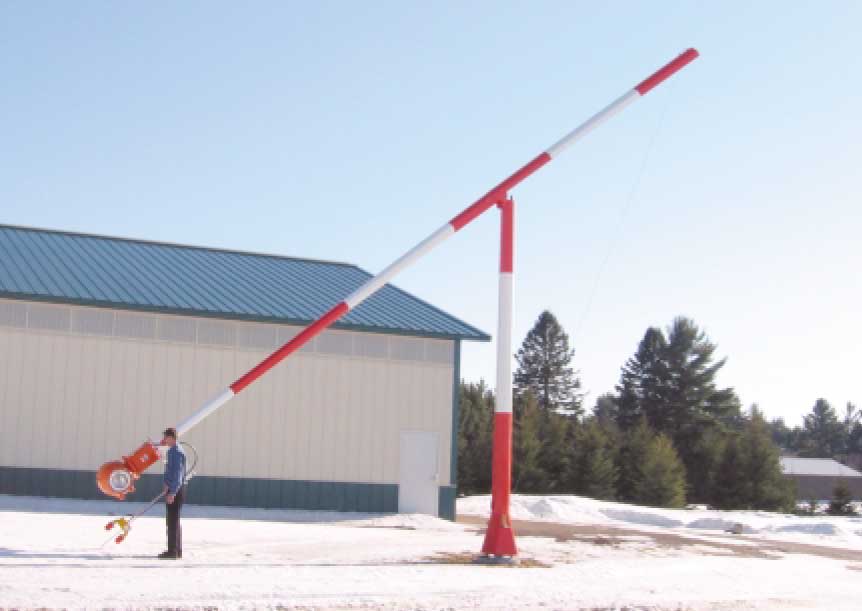

• Mountable on an optional beacon tipdown pole
• Power Consumption: 793 W Class 1, 1193 W Class 2
• Manufactured in the USA

Shipping Information

• Unpackaged Weight: 155 lb.
• Shipping Weight: 225 lb.
• Shipping Volume: 48″x40″x33″

Options

Part Number Description
L801/802 T/T 120 Tell-Tale Relay 120V
L801/802 T/T 240 Tell-Tale Relay 240V 60Hz
L801 HBM SS For corrosive environment installations and installations within 100 miles of seawater: stainless steel cabinet, bearings, legs and hardware throughout.
4200-0000A Tower Mounting Kit: Creates a platform from 36″ beacon to all current model beacons
4200-0001A Tower Mounting Kit, Stainless Steel

Replacement Parts

Part Number Description
0200-0027 Ballast Assembly, 60 Hz
0600-0004 Belt
2300-0003 Lamp fuse, 10 amp
2300-0002 Motor fuse, 1/2 amp
3400-0136 Lamp, 320 watt pulse-start
2800-0056 Lens, aviation white
2800-0057 Lens, aviation green
0100-3825 Lens clip
