Elevated LED Runway Guard Light (RGL) | Certified FAA L-804
Compliance and Applications
Certified to FAA AC 150/5345-46 (Current Edition) for L-804 applications; EB-67.
Our LED Runway Guard Light (RGL) provides a warning to pilots or drivers of ground vehicles that they are approaching an active runway. The RGL increases hold position visibility, especially during bad weather.
Features
• Uses two 21W LED optical assemblies.
• Average LED life of 50,000 hours.
• Energy efficient LED lighting reduces circuit load.
• Operates on FAA constant current regulators, either 3 or 5 step. 120V systems also available.
• Adjustable light beam elevation with positive locking in one-degree increments.
• Minimum average intensity exceeds 3000 candelas.
• Alternately flashes 45-50 times per minute.
• Easy to maintain - no special tools required.
• High strength, powder coated frame and aluminum housing with stainless steel hardware.
• Independent black signal head visors provide protection during inclement weather conditions and enhanced contrast during daylight operations.
• 2-inch frangible column and tether with positive lock canting.
• Supplied with tether and anti-rotation locking plate.
• 300 MPH jet blast resistant.
• Base unit supplied with a dry contact output for monitoring.
• Monitoring is available.

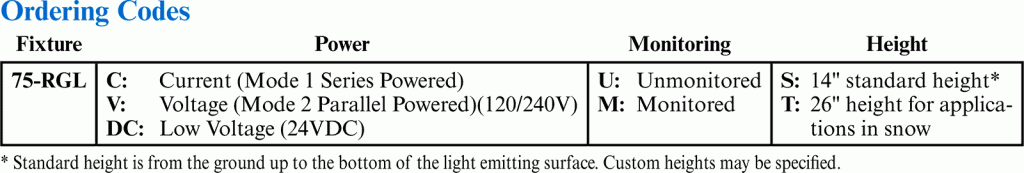

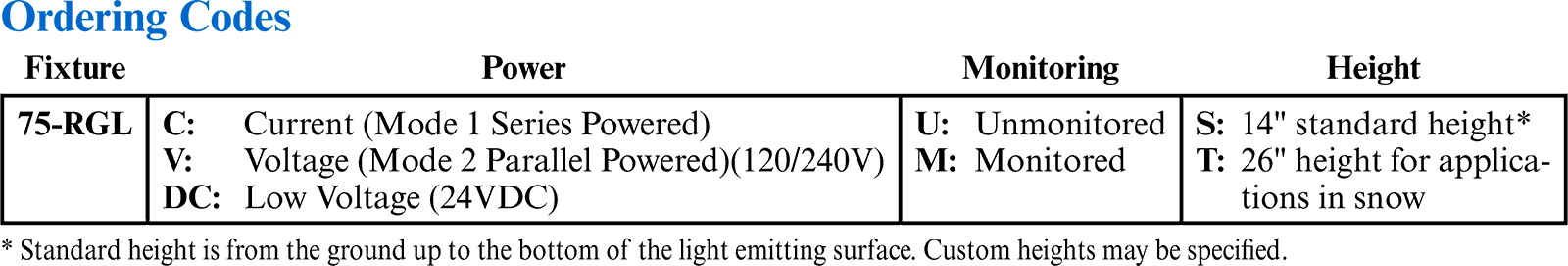

Ordering Codes
| Fixture | Power | Monitoring | Height |
|---|---|---|---|
| 75-RGL | 01C: Current (Mode 1 Series Powered) 02V: Voltage (Mode 2 Parallel Powered) DC: Low Voltage (24VDC) |
U: Unmonitored M: Monitored |
S: 14" standard height* T: 26" height for applications in snow |
| * Standard height is from the ground up to the bottom of the light emitting surface. Custom heights may be specified. | |||
