Airport Lighting & Control Cable | FAA L-824 Type C | Prysmian/Draka
Compliance and Applications
FAA L-824 Type C (AC 150/5345-7F)
Airport Lighting Equipment Certification Program per AC150/5345-53 Appendix 3 Underground Electrical Cable for Airport Lighting Circuits per spec L-824 ICEA S-96-659 (NEMA WC71)

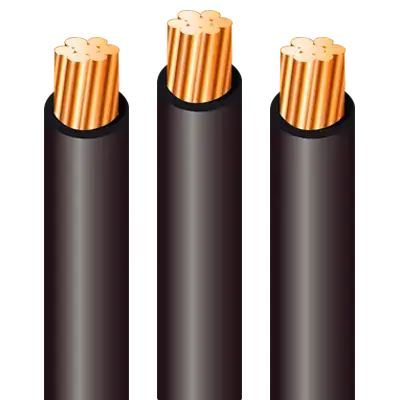

Single conductor 5000 volt nonshielded power cables suitable for L-824 underground installation for lighting at airports per FAA L-824 Type C and AC 150/5345-53 Appendix 3. They are rated for use at 90°C wet or dry conditions. FAA L-824 cables are suitable for use in conduit, duct, aerial and direct burial installations.

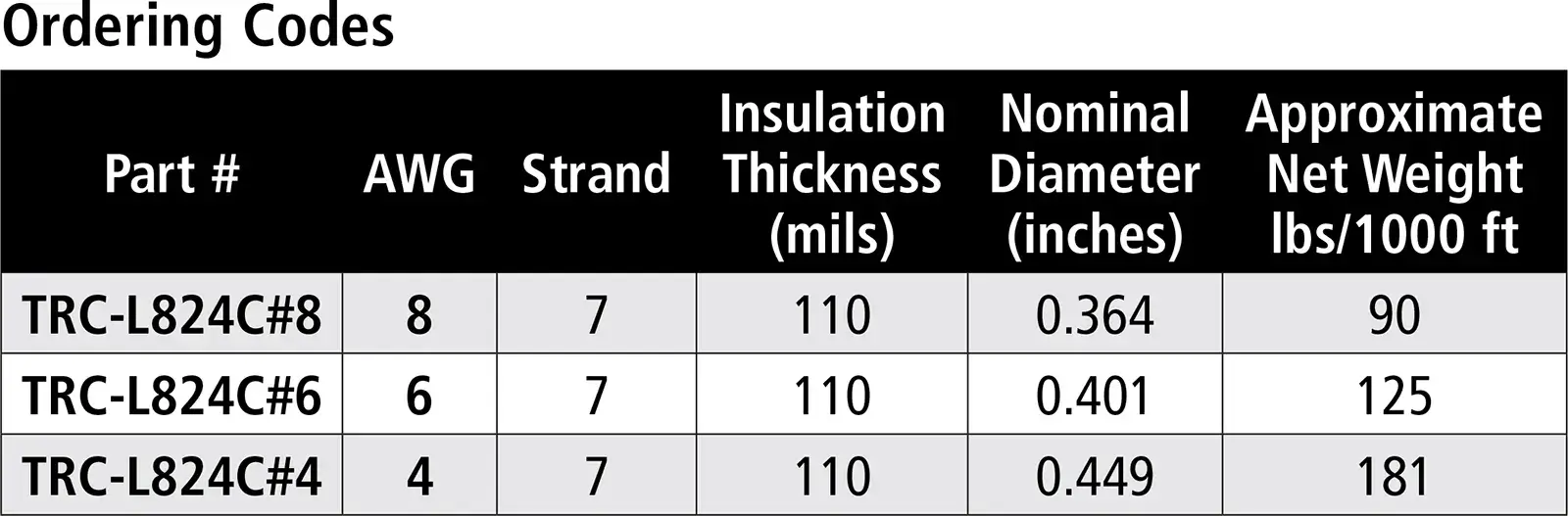

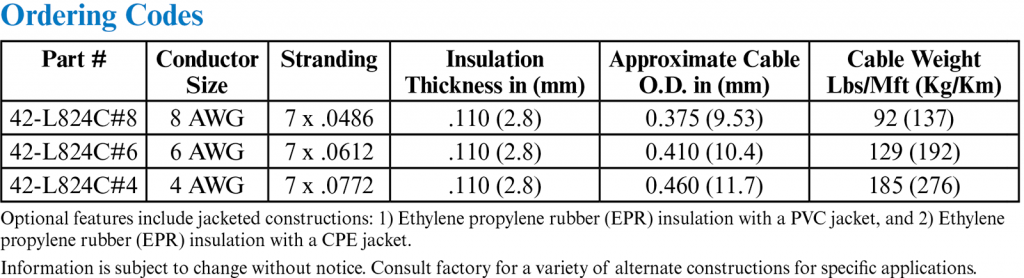

Ordering Codes
| Part # | Conductor Size | Stranding | Insulation Thickness in (mm) | Approximate Cable O.D. in (mm) | Cable Weight Lbs/Mft (Kg/Km) |
|---|---|---|---|---|---|
| TRC-L824C#8 TRC-L824C#6 TRC-L824C#4 |
8 AWG 6 AWG 4 AWG |
7 x .0486 7 x .0612 7 x .0772 |
.110 (2.8) .110 (2.8) .110 (2.8) |
0.375 (9.53) 0.410 (10.4) 0.460 (11.7) |
92 (137) 129 (192) 185 (276) |
| Optional features include jacketed constructions: 1) Ethylene propylene rubber (EPR) insulation with a PVC jacket, and 2) Ethylene propylene rubber (EPR) insulation with a CPE jacket. Information is subject to change without notice. Consult factory for a variety of alternate constructions for specific applications. |
|||||
Features
1. Conductors: Soft drawn stranded bare copper per ASTM B3 and ASTM B8.
2. Insulation: Crosslinked polyethylene (XLPE) 110 mil thick in accordance with NEC 310-6a and ICEA S-96-659. An optional separator tape under the insulation eases stripping.
3. Surface Marking: The jacket surface shall be printed or indented with: DRAKA CABLETEQ USA-PA TAMAQUA CABLE (AWG SIZE) 5 KV XLP NONSHIELD NONJACKET FAA L-824 TYPE C ETL VERIFIED.
